ASV-12.000MHZ-E-J-T, US $ .8-1.58, ASV-12.000MHZ-E-J-T DataSheet download, circuit diagram from SeekIC.com

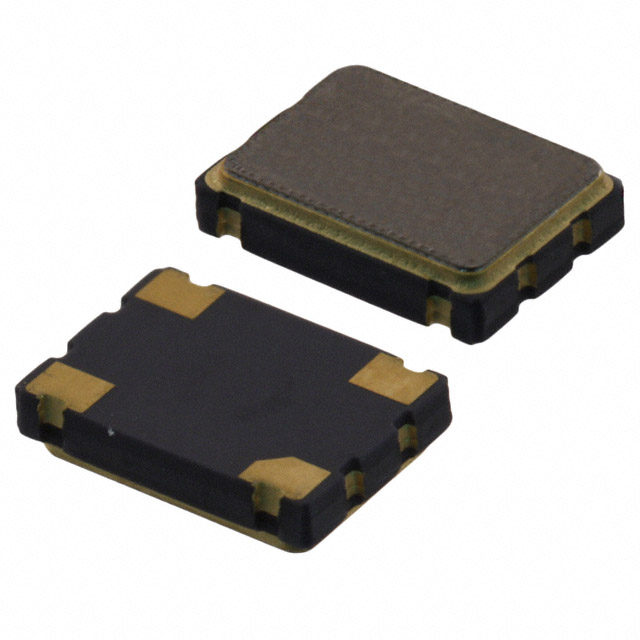

See larger image

SeekIC No. : 003416919 Detail

ASV-12.000MHZ-E-J-T: OSCILLATOR 12.000MHZ 3.3V SMD

ASV-12.000MHZ-E-J-T Data Sheet

US $ .8~1.58 / Piece | Get Latest Price

Part Number:: ASV-12.000MHZ-E-J-T
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100
100~500

Unit Price
$1.58
$1.37
$1.2
$.95
$.8

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ASV-1.544MHZ-L-C-S-T evaluate
US $.53 - .74 / Piece

Standard Clock Oscillators 3.3V 1.544 MHZ
ASV-1.8432MHZ-C-T evaluate
US $.44 - .54 / Piece

Standard Clock Oscillators 1.8432MHz 0C +70C 3.3V 50ppm
ASV-1.8432MHZ-E-J-T evaluate
US $.8 - 1.58 / Piece

OSCILLATOR 1.8432MHZ 3.3V SMD

Product Details

Quick Details

Series:	ASV	Manufacturer:	Abracon Corporation
Type:	XO (Standard)	Frequency:	12MHz
Function:	Tri-State (Output Enable)	Output:	HCMOS
Voltage - Supply:	3.3V	Power Dissipation :	175 W
Frequency Stability:	±20ppm	Operating Temperature:	-20°C ~ 70°C
Current - Supply (Max):	10mA	Ratings:	-
Mounting Type:	Surface Mount	Size / Dimension:	0.276" L x 0.200" W (7.00mm x 5.08mm)
Height:	0.071" (1.80mm)	Package / Case:	4-SMD, No Lead (DFN, LCC)

Description

Type: XO (Standard)
Function: Tri-State (Output Enable)
Voltage - Supply: 3.3V
Ratings: -
Mounting Type: Surface Mount
Package / Case: 4-SMD, No Lead (DFN, LCC)
Packaging: Cut Tape (CT)Alternate Packaging
Operating Temperature: -20°C ~ 70°C
Output: HCMOS
Frequency: 12MHz
Current - Supply (Max): 10mA
Manufacturer: Abracon Corporation
Series: ASV
Size / Dimension: 0.276" L x 0.200" W (7.00mm x 5.08mm)
Height: 0.071" (1.80mm)
Frequency Stability: ±20ppm

Parameters:

Technical/Catalog Information	ASV-12.000MHZ-E-J-T
Vendor	Abracon Corporation
Category	Crystals and Oscillators
Frequency	12MHz
Package / Case	SMD 7mm x 5mm
Packaging	Tape & Reel (TR)
Supply Voltage	3.3V
Type	Standard
Operating Temperature	-20°C ~ 70°C
Frequency Stability	±20ppm
Supply Current	20mA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ASV 12 000MHZ E J T ASV12000MHZEJT 535 9309 2 ND 53593092ND 535-9309-2
