Product Details

Description



Features:

Attenuation in 3 dB Steps to 45 dB
Low DC Power Consumption
Low Cost SOIC-16 Plastic Package

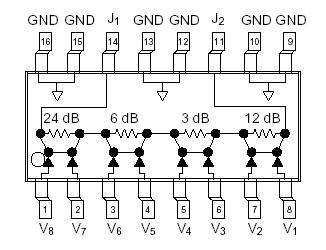

Pinout

Connection Diagram


Specifications

Characteristic
Value
RF Input Power
2 W > 500 MHz 0/-8 V
0.5 W @ 50 MHz 0/-8 V
Control Voltage
+0.2 V, -8 V
Operating Temperature
-40°C to +85°C
Storage Temperature
-65°C to +150°C
JC
25°C/W



Description

    The AT001D6-25 is an IC FET digital attenuator consisting of four monolithic attenuators with LSB of 3 dB and a total attenuation of 45 dB with all attenuators connected. The attenuator is packaged in the plastic 16 lead surface mount package for low cost commercial cellular radio applications.
