Part Number: AT1369
Description: The AT1369 provides complete control and protection for a DC/DC converter optimized for high-performan...
- Table of contents:
AT1369
-
Suppliers
DataSheet
General Description
AT1369 General Description
The AT1369 provides complete control and protection for a DC/DC converter optimized for high-performance microprocessor applications. It is designed to drive one P-Channel and one NChannel MOSFETs in a synchronous-rectified buck topology. The AT1369 integrates all of the control, output adjustment, monitoring and protection functions into a single package. The output voltage of the converter can be precisely regulated with a maximum tolerance of ±2% over temperature and line voltage variations. The AT1369 is a family of low-noise synchronous stepdown DC/DC converters that is ideally suited for systems powered from a 1-cell Li-ion battery or from a 3-cell to 4-cell NiCd, NiMH, or alkaline battery. It can also be used to USB-Based power system.
AT1369 Maximum Ratings
| Parameter |
Condition |
Rated Value |
Unit | |
|
Min. |
Max. | |||
| Power Supply Voltage Source Average Current of PDRV1,NDRV1 PDRV2,NDRV2 Sink Average Current of PDRV1,NDRV1, PDRV2,NDRV2 Source Peak Current of PDRV1,NDRV1, PDRV2,NDRV2 Sink Peak Current of PDRV1,NDRV1, PDRV2,NDRV2 Input Voltage to Error Amplifier Continuous power dissipation Operating temperature Storage temperature |
- - - - - - SSOP20(Ta=+25) - - |
- - - - - - - -30 -55 |
+8 -50 50 -200 200 6.5 560 +85 +125 |
V mA mA mA mA V mW |
AT1369 Features
• High efficiency (min. 90% On IO=300mA ~600mA)
• Using external P and N channel MOSFET
• Maximum Duty 100%
• Oscillation frequency 300KHz or 600KHz
• Soft Start by an external capacity
• Output voltage accuracy ±2%
• Built-in ON/OFF Function
• Built-in Short-circuit Protection
• Stand-by current max. 10µA
• Quiescent Current 1.5mA
• Built-in Power Good reset circuit
• Input voltage: 2.5V ~7.0V
• Using external P and N channel MOSFET
• Maximum Duty 100%
• Oscillation frequency 300KHz or 600KHz
• Soft Start by an external capacity
• Output voltage accuracy ±2%
• Built-in ON/OFF Function
• Built-in Short-circuit Protection
• Stand-by current max. 10µA
• Quiescent Current 1.5mA
• Built-in Power Good reset circuit
• Input voltage: 2.5V ~7.0V
AT1369 Typical Application
• Slim-Type CD-ROM/DVD-ROM/CD-RW
• Power Supply for portable devices
• Power Supply for portable devices

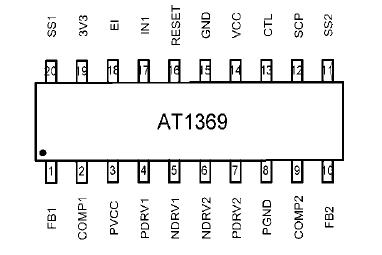

AT1369 Connection Diagram
AT1369AR-GRE
