Part Number: AT1387A
Description: The AT1387A is a 6-channel PWM DC/DC control IC for low voltage applications with a soft start functio...
- Table of contents:
AT1387A
-
Suppliers
DataSheet
General Description
AT1387A General Description
The AT1387A is a 6-channel PWM DC/DC control IC for low voltage applications with a soft start function and short circuit detection function. This IC is ideal for up conversion, down conversion,and up/down conversion (using a step-up/stepdown SEPIC ,Zeta system with free input and output settings). 6 channels can be built in the LQFP48 package, each channel be controlled, and soft-start.
The AT1387A include one comparator to generate low-battery warning outputs. It also contains two high efficiency topology by using synchronous rectification PWM(It can be disable by floating OUT1_2,OUT2_2.)
AT1387A Maximum Ratings
| Parameter |
Symbol |
Condition | Rating |
Unit | |
| Min | Max | ||||
| Power supply voltage |
VCC |
- | - | 6.5 |
V |
| Output current |
IO |
Output pin | - | 30 |
mA |
| Output peak current |
IO |
Output pin, Duty5% | - | 200 |
mA |
| Power dissipation |
PD |
Ta25 (LQFP-48P) | - | 860 |
mW |
| Operating temperature |
Topr |
- | -30 | 85 | |
| Storage temperature |
Tstg |
- | -55 | 125 | |
*Semiconductor devices can be permanently damaged by application of stress in excess of absolute ratings. Do not
exceed these ratings
AT1387A Features
• Wide supply voltage range from 2.5V to 6.5V (CH1~6)
• High speed operation is possible: Maximum 1 MHz
• Supports for up, flyback and up/down SEPIC conversion (CH3,4,5,6)
• Supports for down and up/down Zeta conversion (CH1,2)
• Synchronized rectification on CH1,CH2
• Supports for negative voltage feedback CH5
• Built-in On/Off function
• Built-in Soft-Start Function
• Built-in Short-Circuit Protection.
• High speed operation is possible: Maximum 1 MHz
• Supports for up, flyback and up/down SEPIC conversion (CH3,4,5,6)
• Supports for down and up/down Zeta conversion (CH1,2)
• Synchronized rectification on CH1,CH2
• Supports for negative voltage feedback CH5
• Built-in On/Off function
• Built-in Soft-Start Function
• Built-in Short-Circuit Protection.
AT1387A Typical Application
• Digital Cameras
• CCD Imaging Devices
• Camcorders
• CCD Imaging Devices
• Camcorders

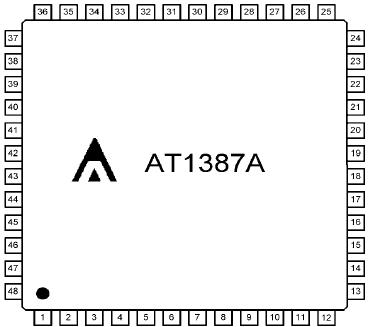

AT1387A Connection Diagram
AT1387AF
