Part Number: AT15-0001



MFG: M/A-COM

Package Cooled: CDIP24

D/C: 0416+

Description: M/A-COM's AT15-0001 is a GaAs FET 5-bit digital attenuator with a 1-dB minimum step size and 31 dB total atten-uation. ...


Urgent Purchase

AT15-0001 General Description


M/A-COM's AT15-0001 is a GaAs FET 5-bit digital attenuator with a 1-dB minimum step size and 31 dB total atten-uation. This attenuator and integral TTL driver is in a 24-pin dual inline package. The AT15-0001 is ideally suited for use where accuracy, fast switching, very low power consumption and low intermodulation products are required. Typical applications include dynamic range setting in precision receiver circuits and other gain/leveling control circuits.

Environmental screening is available. Contact the factory for information.

AT15-0001 Maximum Ratings

Parameter
Absolute Maximum
Max Input Power
DC - 0.5 GHz
0.5 - 2.0 GHz
Supply Voltages
VCC
VEE
Control Voltage
Operating Temperature
Storage Temperature

+27 dBm
+34 dBm

-0.5 V to +7.0 V
-18 V to +0.5 V
-0.5 V to VCC + 0.5 V
-55°C to +125°C
-65°C to +150°C

AT15-0001 Features

Attenuation: 1-dB Steps to 31 dB
Low DC Power Consumption
Integral TTL Driver
50 Nominal Impedance

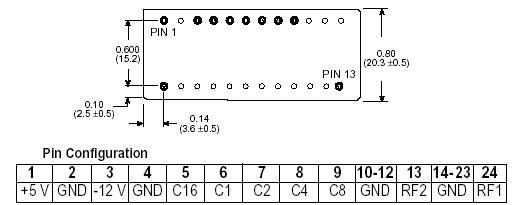

AT15-0001 Connection Diagram

AT15-0001 Connection Diagram

AT15-0001 datasheet

AT15-0001
PDF/DataSheet Download
