Part Number: AT1504









Description: The AT1504 is designed to meet the bias requirements of GaAs and HEMT FETs commonly used in satellite ...


Urgent Purchase

AT1504 General Description


The AT1504 is designed to meet the bias requirements of GaAs and HEMT FETs commonly used in satellite receiver LNBs, PMR, cellular telephones etc. with a minimum of external components. With the addition of two capacitors and resistors the devices provide drain voltage and current control for a number of external grounded source FETs.

The AT1504 is available in SSOP16 pin packages respectively for the minimum in devices size. Device operating temperature is -40 to 70°C to suit a wide range of environmental conditions.

AT1504 Maximum Ratings

Absolute Maximum Ratingsa Symbol Limits Unit
Power supply voltage VCC -0.6~15 V
Supply Current ICC 100 mA
Drain Current VD 0~15 mA
Operating temperature Topr -40~+70
Storage temperature Tstg -50~+85
Power dissipation Pd 500 mW

AT1504 Features

Provides bias for GaAs and HEMT FETs
Drives up to four FETs
Dynamic FET protection
Drain current set by external resistor
Regulated negative rail generator requires only 2 external capacitors
Choice in drain voltage
Wide supply voltage range
SSOP surface mount package

AT1504 Typical Application

Satellite receiver LNBs
Private mobile radio (PMR)
Cellular telephones

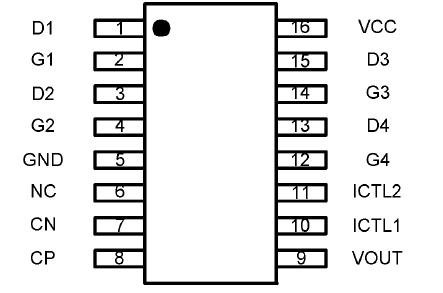

AT1504 Connection Diagram

AT1504 Connection Diagram
