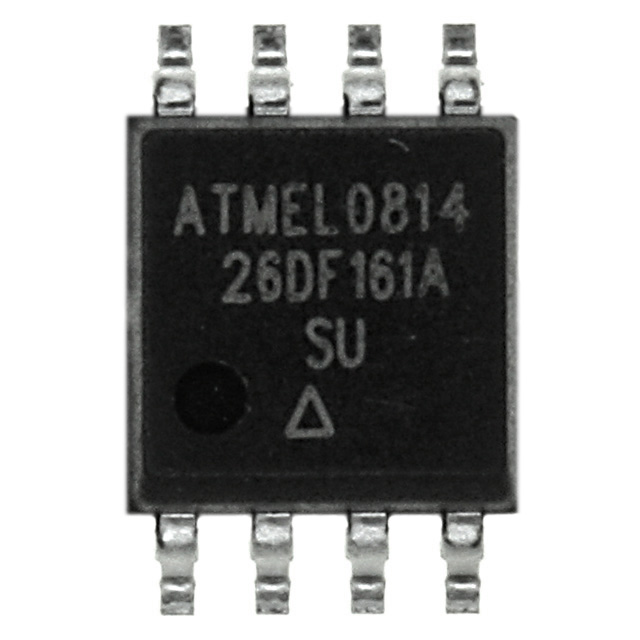

AT26DF161-SU

Data Bus Width :
Memory Type :
Timing Type :
Access Time :
Packaging :
Supply Voltage - Max : 3.6 V
Supply Voltage - Min : 2.7 V
Mounting Style : SMD/SMT
Interface Type : SPI
Operating Temperature : + 85 C
Architecture : Sectored
Maximum Operating Current : 15 mA
Package / Case : SOIC
Memory Size : 128 KB


Pinout




Description

The AT26DF161-SU is a serial interface Flash memory device designed for use in a wide variety of high-volume consumer based applications in which program code is shadowed from Flash memory into embedded or external RAM for execution. The flexible erase architecture of the AT26DF161-SU, with its erase granularity as small as 4-Kbytes,makes it ideal for data storage as well, eliminating the need for additional data storage EEPROM devices.

The physical sectoring and the erase block sizes of the AT26DF161-SU have been optimized to meet the needs of today's code and data storage applications. By optimizing the size of the physical sectors and erase blocks, the memory space can be used much more efficiently. Because certain code modules and data storage segments must reside by themselves in their own protected sectors, the wasted and unused memory space that occurs with large sectored and large block erase Flash memory devices can be greatly reduced. This increased memory space efficiency allows additional code routines and data storage segments to be added while still maintaining the same overall device density.

The AT26DF161-SU also offers a sophisticated method for protecting individual sectors against erroneous or malicious program and erase operations. By providing the ability to individually protect and unprotect sectors, a system can unprotect a specific sector to modify its contents while keeping the remaining sectors of the memory array securely protected. This is useful in applications where program code is patched or updated on a subroutine or module basis, or in applications where data storage segments need to be modified without running the risk of errant modifications to the program code segments.Specifically designed for use in 3-volt systems, the AT26DF161-SU supports read, program, and erase operations with a supply voltage range of 2.7V to 3.6V. No separate voltage is required for programming and erasing.



Parameters:

Technical/Catalog Information	AT26DF161-SU
Vendor	Atmel
Category	Integrated Circuits (ICs)
Memory Type	DataFLASH
Memory Size	16M (8192 pages x 256 bytes)
Speed	66MHz
Interface	SPI, 3-Wire Serial
Package / Case	8-SOIC
Packaging	Tube
Voltage - Supply	2.7 V ~ 3.6 V
Operating Temperature	-40°C ~ 85°C
Format - Memory	FLASH
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AT26DF161 SU AT26DF161SU
