AT27C256R

Features: · Fast Read Access Time - 45 ns · Low Power CMOS Operation 100 mA max. Standby 20 mA max. Active at 5 MHz · JEDEC Standard Packages 28-Lead 600-mil PDIP 32-Lead PLCC 28-Lead TSOP and SOIC · 5V ± 10% Supply · High Reliability CMOS Technology 2,000V ESD Protection 200 mA Latchup Immunity ·...

product image

AT27C256R Picture
See larger image
SeekIC No. : 004289810 Detail

AT27C256R: Features: · Fast Read Access Time - 45 ns · Low Power CMOS Operation 100 mA max. Standby 20 mA max. Active at 5 MHz · JEDEC Standard Packages 28-Lead 600-mil PDIP 32-Lead PLCC 28-Lead TSOP and SOIC ...

AT27C256R Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AT27C256R
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Fast Read Access Time - 45 ns
· Low Power CMOS Operation
  100 mA max. Standby
  20 mA max. Active at 5 MHz
· JEDEC Standard Packages
  28-Lead 600-mil PDIP
  32-Lead PLCC
  28-Lead TSOP and SOIC
· 5V ± 10% Supply
· High Reliability CMOS Technology
  2,000V ESD Protection
  200 mA Latchup Immunity
· RapidÔ Programming Algorithm - 100 ms/byte (typical)
· CMOS and TTL Compatible Inputs and Outputs
· Integrated Product Identification Code
· Commercial and Industrial Temperature Ranges

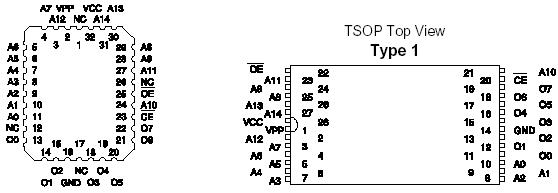

Pinout

Connection Diagram Connection Diagram


Specifications

Temperature Under Bias ................-55°C to +125°C
Storage Temperature......................-65°C to +150°C
Voltage on Any Pin with
Respect to Ground......................... -2.0V to +7.0V (1)
Voltage on A9 with
Respect to Ground ...................... -2.0V to +14.0V (1)
VPP Supply Voltage with
Respect to Ground....................... -2.0V to +14.0V (1)


Description

The AT27C256R is a low-power, high performance 262,144 bit one-time programmable read only memory (OTP EPROM) organized 32K by 8 bits. It requires only one 5V power supply in normal read mode operation. Any byte can be accessed in less than 45 ns, eliminating the need for speed reducing WAIT states on high performance microprocessor systems.

Atmel's scaled CMOS technology provides low active power consumption, and fast programming. Power consumption AT27C256R is typically only 8 mA in Active Mode and less than 10 mA in Standby.
