AT27LV1026

Features: Fast Interleave Cycle Time - 35 nsContinuous Memory Interleaving Unlimited Linear Access Data OutputDual Voltage Range Operation Low Voltage Power Supply Range, 3.0V to 3.6Vor Standard 5V ± 10% Supply RangeLow Power CMOS Operation 108 mW max. Active at 25 MHz for VCC = 3.6V 14.4 mW max. ...

product image

AT27LV1026 Picture
See larger image
SeekIC No. : 004289827 Detail

AT27LV1026: Features: Fast Interleave Cycle Time - 35 nsContinuous Memory Interleaving Unlimited Linear Access Data OutputDual Voltage Range Operation Low Voltage Power Supply Range, 3.0V to 3.6Vor Standard 5V ...

AT27LV1026 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AT27LV1026
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Fast Interleave Cycle Time - 35 ns
Continuous Memory Interleaving
Unlimited Linear Access Data Output
Dual Voltage Range Operation
Low Voltage Power Supply Range, 3.0V to 3.6Vor Standard 5V ± 10% Supply RangeLow Power CMOS Operation
108 mW max. Active at 25 MHz for VCC = 3.6V
14.4 mW max. Standby for VCC = 3.6V
JEDEC Standard Surface Mount Packages
44-Lead PLCC
40-Lead VSOP (10 x 14mm)
High Reliability CMOS Technology
2,000V ESD Protection
200 mA Latchup Immunity
Rapid™ Programming Algorithm - 50 ms/word (typical)
CMOS and TTL Compatible Inputs and Outputs
JEDEC Standard for LVTTL
Integrated Product Identification Code
Commercial and Industrial Temperature Ranges

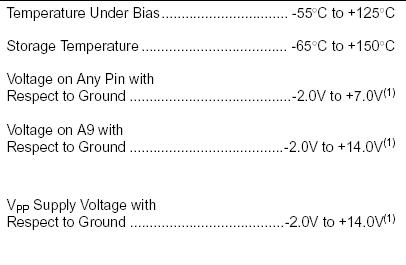

Specifications

Connection Diagram


Description

The AT27LV1026 is a high performance 16-bit interleaved low-voltage 1,048,576-bitone-time programmable read only memory (OTP EPROM) organized as 2 x 32K x 16bits. It requires only one supply in the range of 3.0V to 3.6V in normal read modeoperation.
