Part Number: AT40K20
MFG: ATMEL
D/C: 08+
Description: The AT40K/AT40KLV is a family of fully PCI-compliant, SRAM-based FPGAs with distributed 10 ns programmable synchronous/...
- Table of contents:
AT40K20
-
Suppliers
DataSheet
General Description
AT40K20 General Description
The AT40K/AT40KLV is a family of fully PCI-compliant, SRAM-based FPGAs with distributed 10 ns programmable synchronous/asynchronous, dual-port/single-port SRAM, 8 global clocks, Cache Logic ability (partially or fully reconfigurable without loss of data), automatic component generators, and range in size from 5,000 to 50,000 usable gates. I/O counts range from 128 to 384 in industry standard packages ranging from 84-pin PLCC to 352-ball Square BGA, and support 5V designs for AT40K and 3.3V designs for AT40KLV.
The AT40K/AT40KLV is designed to quickly implement high-performance, large gate count designs through the use of synthesis and schematic-based tools used on a PC or Sun platform. Atmel's design tools provide seamless integration with industry standard tools such as Synplicity, ModelSim, Exemplar and Viewlogic.
The AT40K/AT40KLV can be used as a coprocessor for high-speed (DSP/processorbased) designs by implementing a variety of computation intensive, arithmetic functions. These include adaptive finite impulse response (FIR) filters, fast Fourier transforms (FFT), convolvers, interpolators and discrete-cosine transforms (DCT) that are required for video compression and decompression, encryption, convolution and other multimedia applications.
AT40K20 Maximum Ratings
|
Operating Temperature...................... -55°C to +125°C |
AT40K20 Features
• Ultra High Performance
System Speeds to 100 MHz
Array Multipliers > 50 MHz
10 ns Flexible SRAM
Internal Tri-state Capability in Each Cell
• FreeRAM™
Flexible, Single/Dual Port, Synchronous/Asynchronous 10 ns SRAM
2,048 - 18,432 Bits of Distributed SRAM Independent of Logic Cells
• 128 - 384 PCI Compliant I/Os
3V/5V Capability
Programmable Output Drive
Fast, Flexible Array Access Facilitates Pin Locking
Pin-compatible with XC4000, XC5200 FPGAs
• 8 Global Clocks
Fast, Low Skew Clock Distribution
Programmable Rising/Falling Edge Transitions
Distributed Clock Shutdown Capability for Low Power Management
Global Reset/Asynchronous Reset Options
4 Additional Dedicated PCI Clocks
• Cache Logic® Dynamic Full/Partial Re-configurability In-System
nlimited Re-programmability via Serial or Parallel Modes
Enables Adaptive Designs
Enables Fast Vector Multiplier Updates
QuickChange™ Tools for Fast, Easy Design Changes
• Pin-compatible Package Options
Plastic Leaded Chip Carriers (PLCC)
Thin, Plastic Quad Flat Packs (LQFP, TQFP, PQFP)
Ball Grid Arrays (BGAs)
• Industry-standard Design Tools
Seamless Integration (Libraries, Interface, Full Back-annotation) with Concept®, Everest, Exemplar™, Mentor®, OrCAD®, Synario™, Synopsys®, Verilog®, Veribest®, Viewlogic®, Synplicity®
Timing Driven Placement & Routing
Automatic/Interactive Multi-chip Partitioning
Fast, Efficient Synthesis
Over 75 Automatic Component Generators Create 1000s of Reusable, Fully Deterministic Logic and RAM Functions
• Intellectual Property Cores
Fir Filters, UARTs, PCI, FFT and Other System Level Functions
• Easy Migration to Atmel Gate Arrays for High Volume Production
• Supply Voltage 5V for AT40K, and 3.3V for AT40KLV
System Speeds to 100 MHz
Array Multipliers > 50 MHz
10 ns Flexible SRAM
Internal Tri-state Capability in Each Cell
• FreeRAM™
Flexible, Single/Dual Port, Synchronous/Asynchronous 10 ns SRAM
2,048 - 18,432 Bits of Distributed SRAM Independent of Logic Cells
• 128 - 384 PCI Compliant I/Os
3V/5V Capability
Programmable Output Drive
Fast, Flexible Array Access Facilitates Pin Locking
Pin-compatible with XC4000, XC5200 FPGAs
• 8 Global Clocks
Fast, Low Skew Clock Distribution
Programmable Rising/Falling Edge Transitions
Distributed Clock Shutdown Capability for Low Power Management
Global Reset/Asynchronous Reset Options
4 Additional Dedicated PCI Clocks
• Cache Logic® Dynamic Full/Partial Re-configurability In-System
nlimited Re-programmability via Serial or Parallel Modes
Enables Adaptive Designs
Enables Fast Vector Multiplier Updates
QuickChange™ Tools for Fast, Easy Design Changes
• Pin-compatible Package Options
Plastic Leaded Chip Carriers (PLCC)
Thin, Plastic Quad Flat Packs (LQFP, TQFP, PQFP)
Ball Grid Arrays (BGAs)
• Industry-standard Design Tools
Seamless Integration (Libraries, Interface, Full Back-annotation) with Concept®, Everest, Exemplar™, Mentor®, OrCAD®, Synario™, Synopsys®, Verilog®, Veribest®, Viewlogic®, Synplicity®
Timing Driven Placement & Routing
Automatic/Interactive Multi-chip Partitioning
Fast, Efficient Synthesis
Over 75 Automatic Component Generators Create 1000s of Reusable, Fully Deterministic Logic and RAM Functions
• Intellectual Property Cores
Fir Filters, UARTs, PCI, FFT and Other System Level Functions
• Easy Migration to Atmel Gate Arrays for High Volume Production
• Supply Voltage 5V for AT40K, and 3.3V for AT40KLV
AT40K20
PDF/DataSheet Download
- Datasheet: AT40K20
- File Size: 1628114 KB
- Manufacturer: ATMEL [ATMEL Corporation]
- Click here to Download
- ·AT403
- POSEICO [Power Semiconductors]
- PHASE CONTROL THYRISTOR
- 172778 KB
- ·AT40391B33
- System Controller
- 158891 KB
- ·AT40391B40
- System Controller
- 158891 KB
- ·AT40392-25
- Data Path Controller
- 158891 KB
- ·AT403S12
- POSEICO [Power Semiconductors]
- PHASE CONTROL THYRISTOR
- 172778 KB
- ·AT40493-25
- System Controller
- 156875 KB
- ·AT40493-50
- System Controller
- 156875 KB
- ·AT40495-25
- System Controller
- 52333 KB
AT40K20 Relative Products

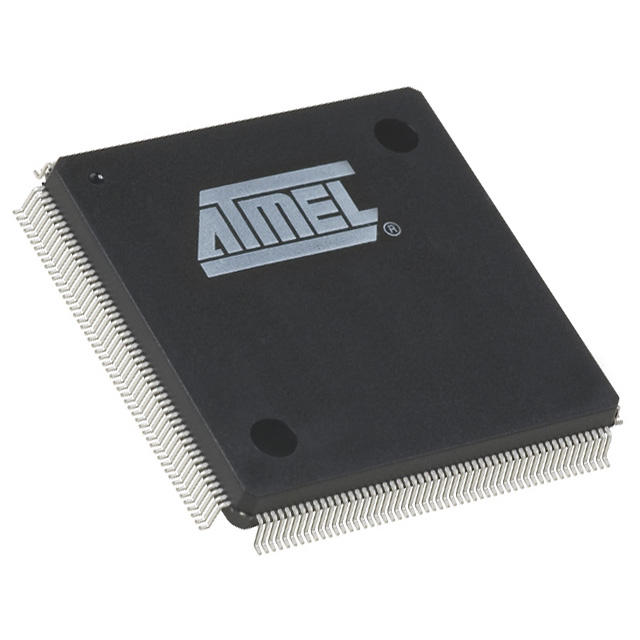

AT40K10LV-3EQI
