AT49LV020 General Description
AT49LV020 Maximum Ratings
Temperature Under Bias................................ -55°C to +125°C
Storage Temperature ................................... -65°C to +150°C
All Input Voltages
(including NC Pins)
with Respect to Ground ...................................-0.6V to +6.25V
All Output Voltages
with Respect to Ground .............................-0.6V to VCC + 0.6V
Voltage on OE
with Respect to Ground ...................................-0.6V to +13.5V
AT49LV020 Features
• Single Supply Voltage, Range 2.7V to 3.6V
• Single Supply for Read and Write
• Fast Read Access Time - 70 ns
• Internal Program Control and Timer
• 8K bytes Boot Block With Lockout
• Fast Erase Cycle Time - 10 seconds
• Byte By Byte Programming - 30 µ µ µ µs/Byte typical
• Hardware Data Protection
• DATA Polling For End Of Program Detection
• Low Power Dissipation
25 mA Active Current
50 µA CMOS Standby Current
• Typical 10,000 Write Cycles

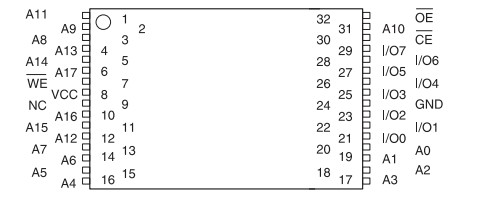

AT49LV020 Connection Diagram
