AT88SC153

Features:

• One 64 x 8 (512-bit) Configuration Zone
• Three 64 x 8 (512-bit) User Zones
• Programmable Chip Select
• Low-voltage Operation: 2.7V to 5.5V
• Two-wire Serial Interface
• 8-byte Page Write Mode
• Self-timed Write Cycle (10 ms max)
• Answer-to-reset Register
• High-security Memory Including Anti-wiretapping
64-bit Authentication Protocol (under exclusive patent license from ELVA)
Secure Checksum
Configurable Authentication Attempts Counter
Two Sets of Two 24-bit Passwords
Specific Passwords for Read and Write
Four Password Attempts Counters
Selectable Access Rights by Zone
• ISO Compliant Packaging
• High Reliability
Endurance: 100,000 Cycles
Data Retention: 100 Years
ESD Protection: 4,000V min
• Low-power CMOS

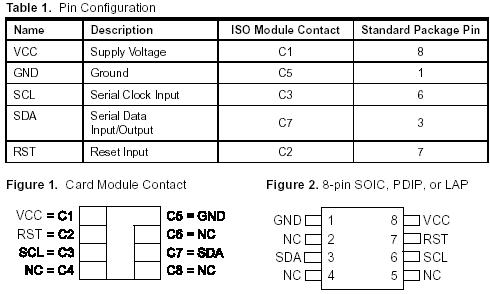

Pinout




Specifications

Operating Temperature..................................... -55°C to +125°C Storage Temperature ....................................... -65°C to +150°C Voltage on Any Pin with Respect to Ground .................................−0.7V to VCC + 0.7V Maximum Operating Voltage.................................................. 6.25V DC Output Current............................................................... 5.0 mA

Description

The AT88SC153 provides 2,048 bits of serial EEPROM memory organized as one configuration zone of 64 bytes and three user zones of 64 bytes each. This device is optimized as a "secure memory" for multiapplication smart card markets, secure identification for electronic data transfer,or components in a system without the requirement of an internal microprocessor.

The embedded authentication protocol allows the memory and the host to authenticate each other. When this device is used with a host that incorporates a microcontroller (e.g.,AT88SC153 AT89C51, AT89C2051, AT90S1200), the system provides an "anti-wiretapping" configuration. The device and the host exchange "challenges" issued from a random generator and verify their values through a specific cryptographic function included in each part. When both agree on the same result, the access to the memory is permitted.
