Part Number: AT89C5130A-M
Description: AT89C5130A/31A-M is a high-performance Flash version of the 80C51 single-chip 8-bit microcontrollers with full speed...
- Table of contents:
AT89C5130A-M
-
Suppliers
DataSheet
General Description
AT89C5130A-M General Description
AT89C5130A/31A-M is a high-performance Flash version of the 80C51 single-chip 8-bit microcontrollers with full speed USB functions.
AT89C5130A/31A-M features a full-speed USB module compatible with the USB specifications Version 1.1 and 2.0. This module integrates the USB transceivers with a 3.3V voltage regulator and the Serial Interface Engine (SIE) with Digital Phase Locked Loop and 48 MHz clock recovery. USB Event detection logic (Reset and Suspend/Resume) and FIFO buffers supporting the mandatory control Endpoint (EP0) and up to 6 versatile Endpoints (EP1/EP2/EP3/EP4/EP5/EP6) with minimum software overhead are also part of the USB module.
AT89C5130A/31A-M retains the features of the Atmel 80C52 with extended Flash capacity (16/32-Kbytes), 256 bytes of internal RAM, a 4-level interrupt system, two 16- bit timer/counters (T0/T1), a full duplex enhanced UART (EUART) and an on-chip oscillator.
In addition, AT89C5130A/31A-M has an on-chip expanded RAM of 1024 bytes (ERAM), a dual data pointer, a 16-bit up/down Timer (T2), a Programmable Counter Array (PCA), up to 4 programmable LED current sources, a programmable hardware watchdog and a power-on reset.
AT89C5130A/31A-M has two software-selectable modes of reduced activity for further reduction in power consumption. In the idle mode the CPU is frozen while the timers, the serial ports and the interrupt system are still operating. In the power-down mode the RAM is saved, the peripheral clock is frozen, but the device has full wake-up capability through USB events or external interrupts.
AT89C5130A-M Features
• 80C52X2 Core (6 Clocks per Instruction)
Maximum Core Frequency 48 MHz in X1 Mode, 24MHz in X2 Mode
Dual Data Pointer
Full-duplex Enhanced UART (EUART)
Three 16-bit Timer/Counters: T0, T1 and T2
256 Bytes of Scratchpad RAM
• 16/32-Kbyte On-chip Flash In-System Programming through USB
Byte and Page (128 bytes) Erase and Write
100k Write Cycles
• 4-Kbyte EEPROM for Bootloader (3-Kbyte) and Data (1-Kbyte)
Byte and Page (128 bytes) Erase and Write
100k Write Cycles
• On-chip Expanded RAM (ERAM): 1024 Bytes
• Integrated Power Monitor (POR/PFD) to Supervise Internal Power Supply
• USB 1.1 and 2.0 Full Speed Compliant Module with Interrupt on Transfer Completion
Endpoint 0 for Control Transfers: 32-byte FIFO
6 Programmable Endpoints with In or Out Directions and with Bulk, Interrupt or Isochronous Transfers
Endpoint 1, 2, 3: 32-byte FIFO
Endpoint 4, 5: 2 x 64-byte FIFO with Double Buffering (Ping-pong Mode)
Endpoint 6: 2 x 512-byte FIFO with Double Buffering (Ping-pong Mode)
Suspend/Resume Interrupts
48 MHz PLL for Full-speed Bus Operation
Bus Disconnection on Microcontroller Request
• 5 Channels Programmable Counter Array (PCA) with 16-bit Counter, High-speed Output, Compare/Capture, PWM
and Watchdog Timer Capabilities
• Programmable Hardware Watchdog Timer (One-time Enabled with Reset-out): 100 ms to 3s at 8 MHz
• Keyboard Interrupt Interface on Port P1 (8 Bits)
• TWI (Two Wire Interface) 400Kbit/s
• SPI Interface (Master/Slave Mode)
• 34 I/O Pins
• 4 Direct-drive LED Outputs with Programmable Current Sources: 2-6-10 mA Typical
• 4-level Priority Interrupt System (11 sources)
• Idle and Power-down Modes
• 0 to 24 MHz On-chip Oscillator with Analog PLL for 48 MHz Synthesis
• Industrial Temperature Range
• Extended Range Power Supply: 2.7V to 5.5V (3.3V to 5.5V required for USB)
• Packages: PLCC52, VQFP64, QFN32
Maximum Core Frequency 48 MHz in X1 Mode, 24MHz in X2 Mode
Dual Data Pointer
Full-duplex Enhanced UART (EUART)
Three 16-bit Timer/Counters: T0, T1 and T2
256 Bytes of Scratchpad RAM
• 16/32-Kbyte On-chip Flash In-System Programming through USB
Byte and Page (128 bytes) Erase and Write
100k Write Cycles
• 4-Kbyte EEPROM for Bootloader (3-Kbyte) and Data (1-Kbyte)
Byte and Page (128 bytes) Erase and Write
100k Write Cycles
• On-chip Expanded RAM (ERAM): 1024 Bytes
• Integrated Power Monitor (POR/PFD) to Supervise Internal Power Supply
• USB 1.1 and 2.0 Full Speed Compliant Module with Interrupt on Transfer Completion
Endpoint 0 for Control Transfers: 32-byte FIFO
6 Programmable Endpoints with In or Out Directions and with Bulk, Interrupt or Isochronous Transfers
Endpoint 1, 2, 3: 32-byte FIFO
Endpoint 4, 5: 2 x 64-byte FIFO with Double Buffering (Ping-pong Mode)
Endpoint 6: 2 x 512-byte FIFO with Double Buffering (Ping-pong Mode)
Suspend/Resume Interrupts
48 MHz PLL for Full-speed Bus Operation
Bus Disconnection on Microcontroller Request
• 5 Channels Programmable Counter Array (PCA) with 16-bit Counter, High-speed Output, Compare/Capture, PWM
and Watchdog Timer Capabilities
• Programmable Hardware Watchdog Timer (One-time Enabled with Reset-out): 100 ms to 3s at 8 MHz
• Keyboard Interrupt Interface on Port P1 (8 Bits)
• TWI (Two Wire Interface) 400Kbit/s
• SPI Interface (Master/Slave Mode)
• 34 I/O Pins
• 4 Direct-drive LED Outputs with Programmable Current Sources: 2-6-10 mA Typical
• 4-level Priority Interrupt System (11 sources)
• Idle and Power-down Modes
• 0 to 24 MHz On-chip Oscillator with Analog PLL for 48 MHz Synthesis
• Industrial Temperature Range
• Extended Range Power Supply: 2.7V to 5.5V (3.3V to 5.5V required for USB)
• Packages: PLCC52, VQFP64, QFN32

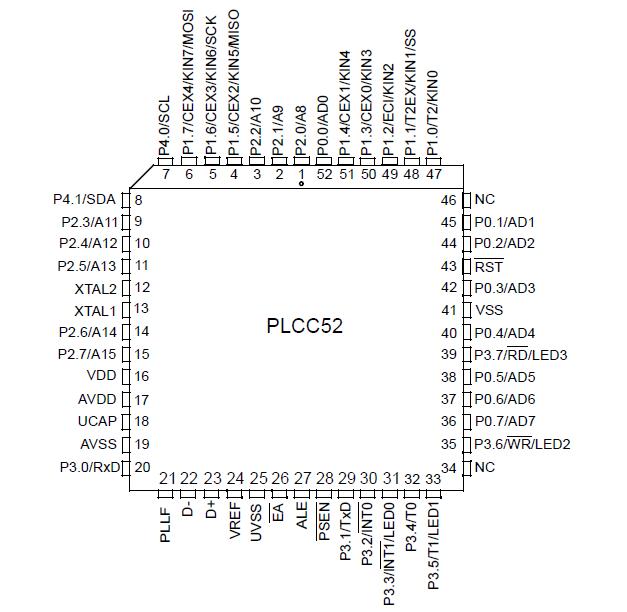

AT89C5130A-M Connection Diagram
