Part Number: AT89C51SND1C

MFG: N/A

Package Cooled: NA/

D/C: 09+

Description: The AT8xC51SND1C are fully integrated stand-alone hardwired MPEG I/II-Layer 3 decoder with a C51 microcon-troller core ...

AT89C51SND1C General Description

The AT8xC51SND1C are fully integrated stand-alone hardwired MPEG I/II-Layer 3 decoder with a C51 microcon-troller core handling data flow and MP3-player control.

The AT89C51SND1C includes 64K Bytes of Flash memory and allows In-System Programming through an embedded 4K Bytes of Boot Flash memory.

The AT83SND1C includes 64K Bytes of ROM memory.

The AT80C51SND1C does not include any code memory.

The AT8xC51SND1C include 2304 Bytes of RAM memory.

The AT8xC51SND1C provides the necessary features for human interface like timers, keyboard port, serial or parallel interface (USB, TWI, SPI, IDE), ADC input, I2S output, and all external memory interface (NAND or NOR Flash, SmartMedia, MultiMedia, DataFlash cards).

AT89C51SND1C Features

• MPEG I/II-Layer 3 Hardwired Decoder
Stand-alone MP3 Decoder
48, 44.1, 32, 24, 22.05, 16 kHz Sampling Frequency
Separated Digital Volume Control on Left and Right Channels (Software Control using 31 Steps)
Bass, Medium, and Treble Control (31 Steps)
Bass Boost Sound Effect
Ancillary Data Extraction
CRC Error and MPEG Frame Synchronization Indicators
• Programmable Audio Output for Interfacing with Common Audio DAC
PCM Format Compatible
I2S Format Compatible
• 8-bit MCU C51 Core Based (FMAX = 20 MHz)
• 2304 Bytes of Internal RAM
• 64K Bytes of Code Memory
AT89C51SND1C: Flash (100K Erase/Write Cycles)
AT83SND1C: ROM
• 4K Bytes of Boot Flash Memory (AT89C51SND1C)
ISP: Download from USB (standard) or UART (option)
• External Code Memory
AT80C51SND1C: ROMless
• USB Rev 1.1 Controller
Full Speed Data Transmission
• Built-in PLL
MP3 Audio Clocks
USB Clock
• MultiMedia Card® Interface Compatibility
• Atmel DataFlash® SPI Interface Compatibility
• IDE/ATAPI Interface
• 2 Channels 10-bit ADC, 8 kHz (8-true bit)
Battery Voltage Monitoring
Voice Recording Controlled by Software
• Up to 44 Bits of General-purpose I/Os
4-bit Interrupt Keyboard Port for a 4 x n Matrix
SmartMedia® Software Interface
• 2 Standard 16-bit Timers/Counters
• Hardware Watchdog Timer
• Standard Full Duplex UART with Baud Rate Generator
• Two Wire Master and Slave Modes Controller
• SPI Master and Slave Modes Controller
• Power Management
Power-on Reset
Software Programmable MCU Clock
Idle Mode, Power-down Mode
• Operating Conditions:
3V, ±10%, 25 mA Typical Operating at 25°C
Temperature Range: -40°C to +85°C
• Packages
TQFP80, BGA81, PLCC84 (Development Board)
Dice

AT89C51SND1C Typical Application

• MP3-Player
• PDA, Camera, Mobile Phone MP3
• Car Audio/Multimedia MP3
• Home Audio/Multimedia MP3

AT89C51SND1C Connection Diagram

AT89C51SND1C datasheet

AT89C51SND1C
PDF/DataSheet Download

Datasheet: AT89C51SND1C
File Size: 769587 KB
Manufacturer: ATMEL [ATMEL Corporation]
Click here to Download

·AT8
Analog IC
55024 KB
·AT80251G2D
ATMEL [ATMEL Corporation]
B/16-BIT MICROCONTROLLER WITH SERIAL COMMUNICATION INTERFACES
1203946 KB
·AT80251G2D-3CSUM
ATMEL [ATMEL Corporation]
B/16-BIT MICROCONTROLLER WITH SERIAL COMMUNICATION INTERFACES
1203946 KB
·AT80251G2D-RLTUL
ATMEL [ATMEL Corporation]
B/16-BIT MICROCONTROLLER WITH SERIAL COMMUNICATION INTERFACES
1203946 KB
·AT80251G2D-RLTUM
ATMEL [ATMEL Corporation]
B/16-BIT MICROCONTROLLER WITH SERIAL COMMUNICATION INTERFACES
1203946 KB
·AT80251G2D-SLSUL
ATMEL [ATMEL Corporation]
B/16-BIT MICROCONTROLLER WITH SERIAL COMMUNICATION INTERFACES
1203946 KB
·AT80251G2D-SLSUM
ATMEL [ATMEL Corporation]
B/16-BIT MICROCONTROLLER WITH SERIAL COMMUNICATION INTERFACES
1203946 KB
·AT804
POSEICO [Power Semiconductors]
PHASE CONTROL THYRISTOR
46212 KB

Related Part Number

AT89C51SND1C Relative Products

AT89C51SND1
This document describes the UART bootloader functionalities as well as the serial protocol to efficiently perform operations on the on-chip Flash memory. Additional information for the AT89C51SND1 product can be found in the AT89C 51SND1 data sheet and the A...

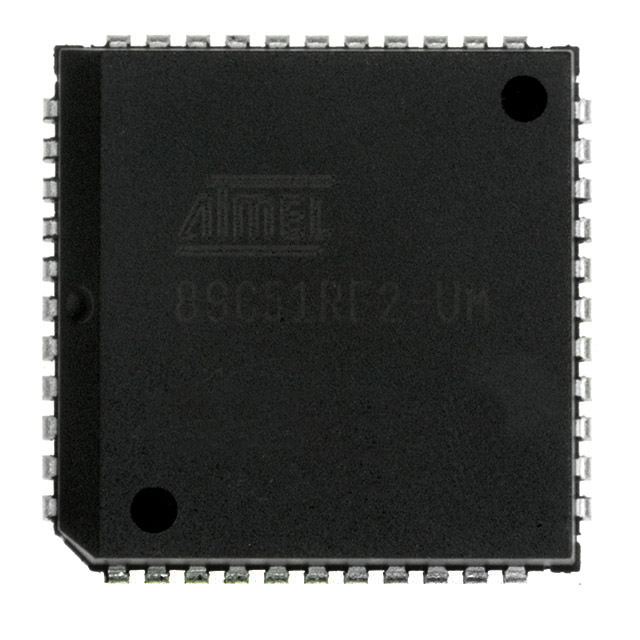

AT89C51RE2-SLSUM
