Purchase ATAR090-D, In-stock ATAR090-D From SeekIC.
MFG:ATMEL D/C:08+
Part Number: ATAR090-D
MFG: ATMEL
D/C: 08+
Description: The ATAR090-D is a member of Atmel's family of 4-bit single-chip microcontrollers. It offers the highe...
- Table of contents:
ATAR090-D
-
Suppliers
DataSheet
General Description
ATAR090-D General Description
The ATAR090-D is a member of Atmel's family of 4-bit single-chip microcontrollers. It offers the highest integration for IR and RF data communication and remote-control. The ATAR090-D is suitable for the transmitter side. They contain ROM, RAM, parallel I/O ports, two 8-bit programmable multifunction timer/counters with modulator and demodulator function, voltage supervisor, interval timer with watchdog function and a sophisticated on-chip clock generation with external clock input, integrated RC-, 32-kHz crystal- and 4-MHz crystal-oscillators.
ATAR090-D Maximum Ratings
| Parameters | Symbol |
Value |
Unit |
| Supply voltage Input voltage (on any pin) Output short circuit duration Operating temperature range Storage temperature range Soldering temperature (t 10 s) |
VDD VIN tshort Tamb Tstg Tsld |
-0.3 to + 6.5 VSS -0.3 VIN VDD +0.3 indefinite -40 to +125 -40 to +130 260 |
V V s °C °C °C |
ATAR090-D Features
• Extended Temperature Range for Very High Temperature up to 125°C
• 2-Kbyte ROM, 256 * 4-bit RAM
• 12 Bi-directional I/Os
• Up to 6 External/Internal Interrupt Sources
• Multifunction Timer/Counter with
IR Remote Control Carrier Generator
Bi-phase-, Manchester- and Pulse-width Modulator and Demodulator
• Programmable System Clock with Prescaler and Five Different Clock Sources
• Wide Supply-voltage Range (1.8 V to 6.5 V)
• Very Low Sleep Current (< 1 µA)
• Synchronous Serial Interface (2-wire, 3-wire)
• Watchdog, POR and Brown-out Function
• Voltage Monitoring Inclusive Lo_BAT Detection
• Flash Controller ATAM893 Available (SSO20)
• 2-Kbyte ROM, 256 * 4-bit RAM
• 12 Bi-directional I/Os
• Up to 6 External/Internal Interrupt Sources
• Multifunction Timer/Counter with
IR Remote Control Carrier Generator
Bi-phase-, Manchester- and Pulse-width Modulator and Demodulator
• Programmable System Clock with Prescaler and Five Different Clock Sources
• Wide Supply-voltage Range (1.8 V to 6.5 V)
• Very Low Sleep Current (< 1 µA)
• Synchronous Serial Interface (2-wire, 3-wire)
• Watchdog, POR and Brown-out Function
• Voltage Monitoring Inclusive Lo_BAT Detection
• Flash Controller ATAM893 Available (SSO20)

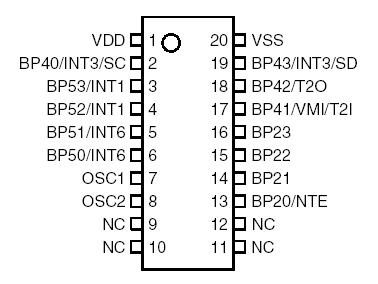

ATAR090-D Connection Diagram
ATAR090-D
PDF/DataSheet Download
- Datasheet: ATAR090-D
- File Size: 1138688 KB
- Manufacturer: ATMEL
- Click here to Download
