Position: Home > Datasheet list > ATF Series > Index A > ATF-50189-TR1
Electronica China

Purchase ATF-50189-TR1, In-stock ATF-50189-TR1 From SeekIC.

MFG:Avago Technologies US Inc.  Category:Transistors, FETs, IGBTs

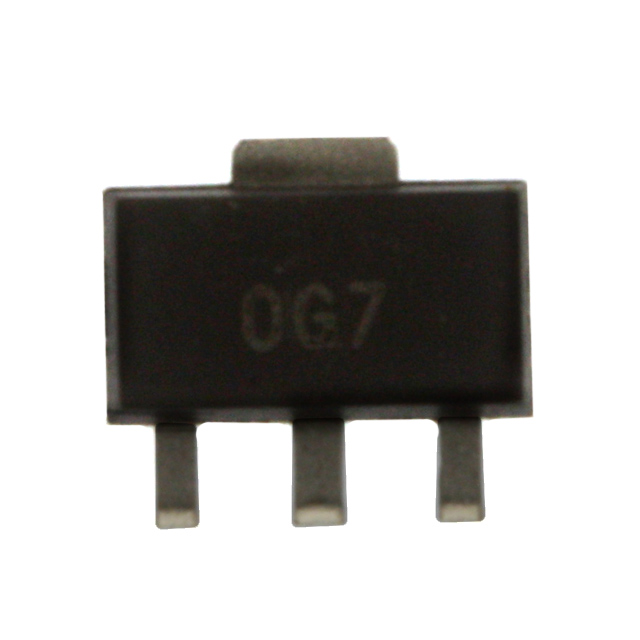

ATF-50189-TR1 Product Image

ATF Series Datasheet download

Five Points

Part Number: ATF-50189-TR1

Category: Transistors, FETs, IGBTs

MFG: Avago Technologies US Inc.





Descriptions: IC PHEMT 2GHZ 4.5V 280MA SOT-89

Price Break

3000

Unit Price

3.55600

Extended Price

10668.00

(All prices are in USD) Prices for reference only
Urgent Purchase

ATF-50189-TR1 General Description

IC PHEMT 2GHZ 4.5V 280MA SOT-89

ATF-50189-TR1 Parameters

Technical/Catalog InformationATF-50189-TR1
VendorAvago Technologies US Inc.
CategoryTransistors, FETs, IGBTs
Mounting TypeSurface (SMD, SMT)
Package NameSOT-89
FET TypeN-Channel
Typical RF ApplicationMMDS
Typical RF ApplicationWLL
Drain to Source Voltage (Vdss)7.0 V [Nom]
Voltage Gate to Source (Vgs)5.0 V [Max]
Drain Gate Voltage (Vdg)5.0 [Nom]
Continuous Drain Current (Id)1.00 A [Nom]
Power Dissipation2.250 W [Max]
PackagingTape & Reel, 7"
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names ATF 50189 TR1
