Part Number: ATF1502ASV

MFG: N/A

Package Cooled: QFP

D/C: 08+

Description: The ATF1502ASV is a high-performance, high-density complex programmable logic device (CPLD) that utilizes ...

ATF1502ASV General Description

The ATF1502ASV is a high-performance, high-density complex programmable logic device (CPLD) that utilizes Atmel's proven electrically-erasable technology. With 32 logic macrocells and up to 36 inputs, it easily integrates logic from several TTL, SSI, MSI, LSI and classic PLDs. The ATF1502ASV's enhanced routing switch matrices increase usable gate count and the odds of successful pin-locked design modifications.
The ATF1502ASV has up to 32 bi-directional I/O pins and four dedicated input pins, depending on the type of device package selected. Each dedicated pin can also serve as a global control signal, register clock, register reset or output enable. Each of these control signals can be selected for use individually within each macrocell.

ATF1502ASV Maximum Ratings

Temperature Under Bias.................................. -40 to +85
Storage Temperature .................................... -65 to +150
Voltage on Any Pin with
Respect to Ground .......................................-2.0V to +7.0V⁽¹⁾
Voltage on Input Pins
with Respect to Ground
During Programming...................................-2.0V to +14.0V⁽¹⁾
Programming Voltage with
Respect to Ground .....................................-2.0V to +14.0V⁽¹⁾

ATF1502ASV Features

• High-density, High-performance, Electrically-erasable Complex Programmable
   Logic Device
   3.0 to 3.6V Operating Range
   32 Macrocells
   5 Product Terms per Macrocell, Expandable up to 40 per Macrocell
   44 Pins
   15 ns Maximum Pin-to-pin Delay
   Registered Operation up to 77 MHz
   Enhanced Routing Resources
• In-System Programmability (ISP) via JTAG
• Flexible Logic Macrocell
   D/T Latch Configurable Flip-flops
   Global and Individual Register Control Signals
   Global and Individual Output Enable
   Programmable Output Slew Rate
   Programmable Output Open Collector Option
   Maximum Logic Utilization by Burying a Register with a COM Output
• Advanced Power Management Features
   Pin-controlled 0.75 mA Standby Mode
   Programmable Pin-keeper Inputs and I/Os
   Reduced-power Feature per Macrocell
• Available in Commercial and Industrial Temperature Ranges
• Available in 44-lead PLCC and TQFP
• Advanced EEPROM Technology
   100% Tested
   Completely Reprogrammable
   10,000 Program/Erase Cycles
   20-year Data Retention
   2000V ESD Protection
   200 mA Latch-up Immunity
• JTAG Boundary-scan Testing to IEEE Std. 1149.1-1990 and 1149.1a-1993 Supported
• PCI-compliant
• Security Fuse Feature

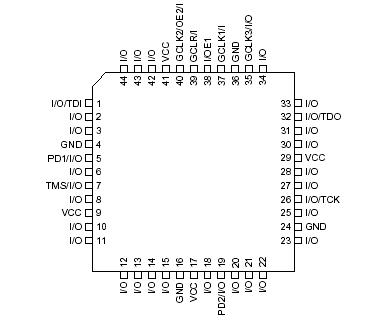

ATF1502ASV Connection Diagram
