General Description
ATF16V8B General Description
The ATF16V8B is a high performance CMOS (Electrically Erasable) Programmable Logic Device (PLD) which utilizes Atmel's proven electrically erasable Flash memory technology. Speeds down to 7.5 ns are offered. All speed ranges are specified over the full 5V ± 10% range for industrial temperature ranges, and 5V ± 5% for commercial tempera-
ture ranges.
Several low power options allow selection of the best solution for various types of power-limited applications. Each of these options significantly reduces total system power and enhances system reliability.
The ATF16V8Bs incorporate a superset of the generic architectures, which allows direct replacement of the 16R8 family and most 20-pin combinatorial PLDs. Eight outputs are each allocated eight product terms. Three different modes of operation, configured automatically with software, allow highly complex logic functions to be realized.
ATF16V8B Maximum Ratings
Temperature Under Bias.................................- 55to +125
Storage Temperature ......................................-65 to +150
Voltage on Any Pin with
Respect to Ground ......................................-2.0 V to +7.0 V(1)
with Respect to Ground
During Programming..................................-2.0 V to +14.0 V(1)
Programming Voltage with
Respect to Ground .....................................2.0 V to +14.0 V(1)
*NOTICE: Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Note: 1. Minimum voltage is -0.6V DC, which may under-shoot to -2.0V for pulses of less than 20 ns. Maximum output pin voltage is VCC + 0.75V DC,
which may overshoot to 7.0V for pulses of less than 20 ns.
ATF16V8B Features
• Industry Standard Architecture
Emulates Many 20-Pin PALs®
Low Cost Easy-to-Use Software Tools
• High-Speed Electrically Erasable Programmable Logic Devices
7.5 ns Maximum Pin-to-Pin Delay
• Several Power Saving Options
• CMOS and TTL Compatible Inputs and Outputs
Input and I/O Pull-Up Resistors
• Advanced Flash Technology
Reprogrammable
100% Tested
• High Reliability CMOS Process
20 Year Data Retention
100 Erase/Write Cycles
2,000V ESD Protection
200 mA Latchup Immunity
• Commercial, and Industrial Temperature Ranges
• Dual-in-Line and Surface Mount Packages in Standard Pinouts
Emulates Many 20-Pin PALs®
Low Cost Easy-to-Use Software Tools
• High-Speed Electrically Erasable Programmable Logic Devices
7.5 ns Maximum Pin-to-Pin Delay
• Several Power Saving Options
• CMOS and TTL Compatible Inputs and Outputs
Input and I/O Pull-Up Resistors
• Advanced Flash Technology
Reprogrammable
100% Tested
• High Reliability CMOS Process
20 Year Data Retention
100 Erase/Write Cycles
2,000V ESD Protection
200 mA Latchup Immunity
• Commercial, and Industrial Temperature Ranges
• Dual-in-Line and Surface Mount Packages in Standard Pinouts

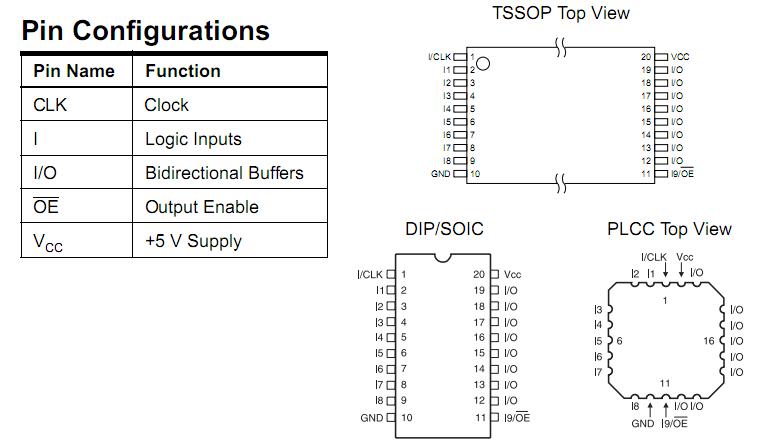

ATF16V8B Connection Diagram
ATF16V8B
PDF/DataSheet Download
- Datasheet: ATF16V8B
- File Size: 651965 KB
- Manufacturer: ATMEL [ATMEL Corporation]
- Click here to Download
