Part Number:: ATmega169P
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Description

Features:

• High Performance, Low Power AVR® 8-Bit Microcontroller
• Advanced RISC Architecture
130 Powerful Instructions Most Single Clock Cycle Execution
32 x 8 General Purpose Working Registers
Fully Static Operation
Up to 16 MIPS Throughput at 16 MHz
On-Chip 2-cycle Multiplier
• Non-volatile Program and Data Memories
16K bytes of In-System Self-Programmable Flash
Endurance: 10,000 Write/Erase Cycles
Optional Boot Code Section with Independent Lock Bits
In-System Programming by On-chip Boot Program
True Read-While-Write Operation
512 bytes EEPROM Endurance: 100,000 Write/Erase Cycles
1K byte Internal SRAM
Programming Lock for Software Security
• JTAG (IEEE std. 1149.1 compliant) Interface
Boundary-scan Capabilities According to the JTAG Standard
Extensive On-chip Debug Support
Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface
• Peripheral Features
4 x 25 Segment LCD Driver
Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode
One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
Real Time Counter with Separate Oscillator
Four PWM Channels
8-channel, 10-bit ADC
Programmable Serial USART
Master/Slave SPI Serial Interface
Universal Serial Interface with Start Condition Detector
Programmable Watchdog Timer with Separate On-chip Oscillator
On-chip Analog Comparator
Interrupt and Wake-up on Pin Change
• Special Microcontroller Features
Power-on Reset and Programmable Brown-out Detection
Internal Calibrated Oscillator
External and Internal Interrupt Sources
Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby
• I/O and Packages
54 Programmable I/O Lines
64-lead TQFP and 64-pad QFN/MLF
• Speed Grade:
ATmega169PV: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 8 MHz @ 2.7 - 5.5V
ATmega169P: 0 - 8 MHz @ 2.7 - 5.5V, 0 - 16 MHz @ 4.5 - 5.5V
• Temperature range:
-40°C to 85°C Industrial
• Ultra-Low Power Consumption
Active Mode: 1 MHz, 1.8V: 330 µA 32 kHz, 1.8V: 10 µA (including Oscillator) 32 kHz, 1.8V: 25 µA (including Oscillator and LCD)
Power-down Mode: 0.1 µA at 1.8V
Power-save Mode: 0.6 µA at 1.8V(Including 32 kHz RTC)

Pinout

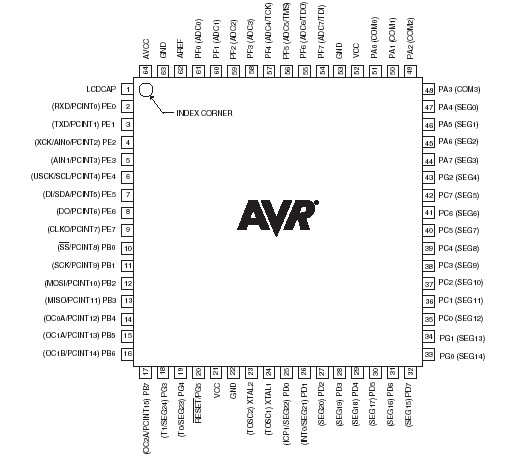

Connection Diagram

Specifications

Operating Temperature............................. -55°C to +125°C
Storage Temperature ............................... -65°C to +150°C
Voltage on any Pin except RESET
with respect to Ground ..............................-0.5V to VCC+0.5V
Voltage on RESET with respect to Ground......-0.5V to +13.0V
Maximum Operating Voltage .......................................... 6.0V
DC Current per I/O Pin ............................................. 40.0 mA
DC Current VCC and GND Pins................................ 400.0 mA
*NOTICE: Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
