AV112-12

Features: Specified Attenuation: 17.525 dB Total Attenuation: 30 dB Typical Low Insertion Loss: < 1.5 dB Low Distortion: +40 dBm Typical Low Phase Shift and DelayPinoutSpecifications Characteristic Value RF Input Power 0.5 W CW, 4 W @ 12.5% Duty Cycle ...

product image

AV112-12 Picture
See larger image
SeekIC No. : 004291758 Detail

AV112-12: Features: Specified Attenuation: 17.525 dB Total Attenuation: 30 dB Typical Low Insertion Loss: < 1.5 dB Low Distortion: +40 dBm Typical Low Phase Shift and DelayPinoutSpecifications Ch...

AV112-12 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AV112-12
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Specified Attenuation: 17.525 dB
Total Attenuation: 30 dB Typical
Low Insertion Loss: < 1.5 dB
Low Distortion: +40 dBm Typical
Low Phase Shift and Delay


Pinout

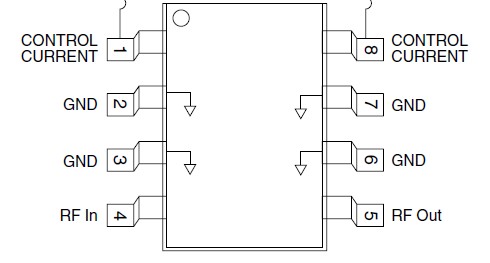

Connection Diagram


Specifications

Characteristic
Value
RF Input Power
0.5 W CW, 4 W @ 12.5%
Duty Cycle
Control Current
50 mA Each Diode
Operating Temperature
-40 to +85°C
Storage Temperature
-40 to +85°C
Maximum Reverse Diode Voltage
-10 V
Electrostatic Discharge
+125 V



Description

The AV112-12 is a low distortion, PIN diode variable attenuator in a small SOIC-8 package.The design is based on Skyworks' unique series of HIP3™ components. The AV112-12 consists of a monolithic quadrature hybrid and a matched pair of PIN diodes designed for low distortion attenuators.
