Part Number: AV113-12



MFG: ALPHA





Description: The AV113-12 is a current controlled variable attenuator from Alpha's series of HIP3™ components. It is designed ...


Urgent Purchase

AV113-12 General Description


The AV113-12 is a current controlled variable attenuator from Alpha's series of HIP3™ components. It is designed to meet the wide dynamic range required in IMT-2000 applications.A monolithic quadrature hybrid is teamed with a silicon PIN diode pair in a plastic surface mount package reducing size and assuring consistency from part to part.

AV113-12 Maximum Ratings

Characteristic
Value
RF Input Power
0.5 W CW, 4 W @ 12.5%
Duty Cycle
Control Current
50 mA Each Diode
Operating Temperature
-40 to +85°C
Storage Temperature
-40 to +85°C
Maximum Reverse Diode Voltage
-10 V
Electrostatic Discharge
+125 V
Note: Operating this device above any of these parameters may cause irreversible damage.

AV113-12 Features

· Low Loss 1.4 dB Typical
· Attenuation 18 dB Typical
· Good VSWR <1.5:1 Typical
· Small SOIC-8 Package
· For IMT-2000 Applications

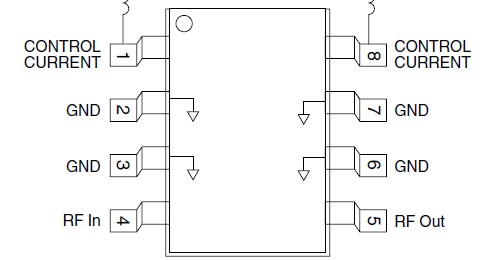

AV113-12 Connection Diagram

AV113-12 Connection Diagram

AV113-12 datasheet

AV113-12
PDF/DataSheet Download
