Features:

High Linearity (IP3 55 dBm @ 1.9 GHz)
High Isolation (20 dB @ 1.9 GHz)
Low Insertion Loss (0.55 dB @ 1.9 GHz)\
Low DC Power Consumption
Positive 3V or 5V Control Voltage

Application

transmit/receive switch
diversity switching
and antenna selection

Pinout

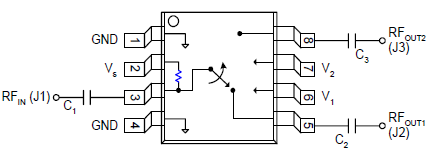

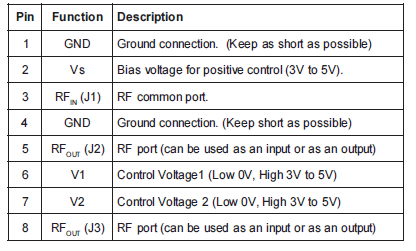

Connection Diagram

Specifications

Characteristics	Value
RF Input Power	6 W Max > 900 MHz, 0/+5 V Control
Supply Voltage	+8 V
Control Voltage	-0.2 V, +8 V
Operating Temperature	-40° C to +85°C
Storage Temperature	-65°C to +150°C
_JC	25° C/W

Description

The AWS5503 is a Single Pole Double Throw (SPDT) GaAs MMIC assembled in a MSOP-8 plastic package. The AWS5503 is designed for analog and digital applications that require low insertion loss, high linearity, and small size. State selection is achieved with positive voltage.
