AWS5504

Features: · High Linearity (IP3 48 dBm @ 0.9 GHz)· Low Insertion Loss (0.4 dB @ 0.9 GHz)· 2.75 V to -3.5 to +2.75 operation· Low DC Power Consumption· Ultra Miniature SOT-26 Package· High IsolationApplication· Transmit/receive switch· Diversity switching· Antenna selectionPinout Specifications ...

product image

AWS5504 Picture
See larger image
SeekIC No. : 004292228 Detail

AWS5504: Features: · High Linearity (IP3 48 dBm @ 0.9 GHz)· Low Insertion Loss (0.4 dB @ 0.9 GHz)· 2.75 V to -3.5 to +2.75 operation· Low DC Power Consumption· Ultra Miniature SOT-26 Package· High IsolationA...

AWS5504 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AWS5504
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High Linearity (IP3 48 dBm @ 0.9 GHz)
· Low Insertion Loss (0.4 dB @ 0.9 GHz)
· 2.75 V to -3.5 to +2.75 operation
· Low DC Power Consumption
· Ultra Miniature SOT-26 Package
· High Isolation


Application

· Transmit/receive switch
· Diversity switching
· Antenna selection


Pinout

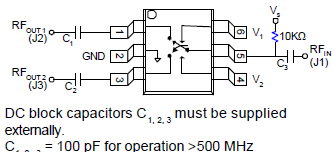

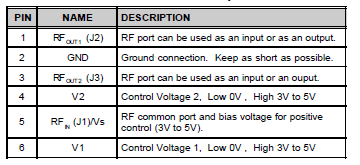

Connection Diagram           Connection Diagram


Specifications

PARAMETER MIN MAX UNIT
RF Input Power
> 900 MHz, 0/-5 V Control		 - 6 W
Control Voltage -0.2 +8 V
Operating Temperature -40 +85 °C
Storage Temperature -65 +150 °C
JC - 25 °C/W



Description

The AWS5504 is a Single Pole Double Throw (SPDT) GaAs MMIC switch assembled in a SOT-6 plastic package. The AWS5504 is designed for analog and digital applications that require low insertion loss, high linearity, and small size. The switch can be controlled with positive, negative, or a combination of both voltages.
