AX88190P

Features: · IEEE 802.3u 100BASE-T, TX, and T4 Compatible· Single chip PCMCIA bus 10/100Mbps Fast Ethernet MAC Controller· NE2000 register level compatible instruction· Compliant with 16 bit PC Card Standard - February 1995· Support both 10Mbps and 100Mbps data rate· Support both full-duplex or hal...

product image

AX88190P Picture
See larger image
SeekIC No. : 004292336 Detail

AX88190P: Features: · IEEE 802.3u 100BASE-T, TX, and T4 Compatible· Single chip PCMCIA bus 10/100Mbps Fast Ethernet MAC Controller· NE2000 register level compatible instruction· Compliant with 16 bit PC Card ...

AX88190P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AX88190P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· IEEE 802.3u 100BASE-T, TX, and T4 Compatible
· Single chip PCMCIA bus 10/100Mbps Fast Ethernet MAC Controller
· NE2000 register level compatible instruction
· Compliant with 16 bit PC Card Standard - February 1995
· Support both 10Mbps and 100Mbps data rate
· Support both full-duplex or half-duplex operation
· Provides a MII port for both 10/100Mbps operation
· Support 256/512 bytes EEPROM (used for saving CIS)
· Support automatic loading of Ethernet ID, CIS and Adapter Configuration from EEPROM on poweron initialization
· External and internal loop-back capability
· 128-pin LQFP low profile package
· 25MHz Operation, Dual 5V and 3.3V CMOS process with 5V I/O tolerance. Or pure 3.3V operation


Pinout

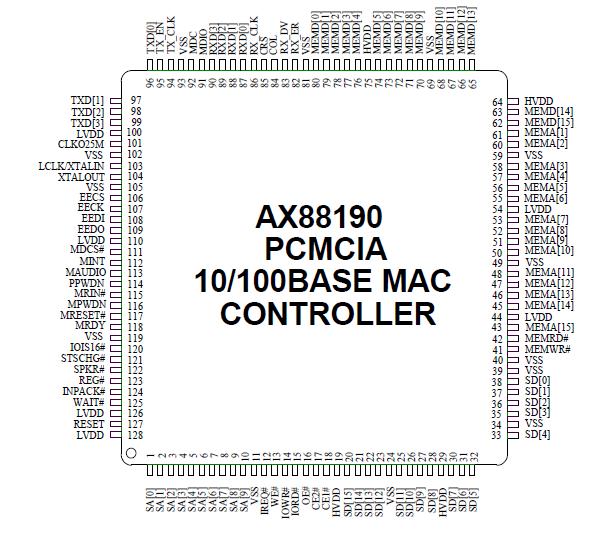

Connection Diagram


Specifications

Description SYM Min Max Units
Operating Temperature Ta 0 +85 °C
Storage Temperature Ts -55 +150 °C
Supply Voltage HVdd -0.3 +6 V
Supply Voltage LVdd -0.3 +4.6 V
Input Voltage HVin
LVin		 -0.3
-0.3		 HVdd+0.5
LVdd+0.5		 V
V
Output Voltage HVout
LVin		 -0.3
-0.3		 HVdd+0.5
LVdd+0.5		 V
V
Lead Temperature (soldering 10 seconds maximum) Tl -55 +220 °C
Note : Stress above those listed under Absolute Maximum Ratings may cause permanent damage to the device.
Exposure to Absolute Maximum Ratings conditions for extended period, adversely affect device life and reliability.
Note : The power supply voltages must always fulfill HVdd >= LVdd inequality.


Description

The AX88190 Fast Ethernet Controller is a high performance PCMCIA bus Ethernet Controller. The AX88190 contains a 16 bit PCMCIA interfaces to host CPU and compliant with PC Card Standard February 1995. The AX88190 implements both 10Mbps and 100Mbps Ethernet function based on IEEE802.3 / IEEE802.3u LAN standard. The AX88190 supports 10Mbps/100Mbps media-independent interface (MII) to simplify the design. The AX88190 is built in interface to connect FAX/MODEM chipset with parallel bus interface.
