Product Details

Description



Features:

·  5-Port Gigabit Ethernet switch integrating MACs,packet buffer memory and switching engine with GMII/MII interface
·  Full Duplex 1000 Mbit/s.
·  Full and Half Duplex 10/100 Mbit/s
·  Supports auto-sensing or manual selection for speed and duplex capability with an embedded MPU
·  Store-and-forward operation support
·  Performs full wire-speed switching with no HOL blocking
·  Broadcast storm control
·  Quality-of-Service provisioning on 802.1P tag and port-pairs with two priority queues
·  Embedded 128K Byte SRAM for packet buffer
·  Integrated two-way Address-Lookup engine and table for 4K MAC addresses
·  Programmable aging mechanism for the two-way 4K MAC addresses table
·  Full-duplex IEEE 802.3x flow control
·  Half-duplex back pressure flow control
·  Port trunking for high-bandwidth links
·  Provides 5 GPIO ports
·  Provides EEPROM interface for auto-configuration
·  System clock input is one 27MHz Crystal and one 125MHz Oscillator
·  2.5 and 3.3V operations
·  3.3 I/Os and packaged in 256-pin PQFP


Application

5-Port Gigabit Layer 2 Switches for workgroup
High-port count Layer 2 switches with trunking
High performance solution of Ethernet backbone

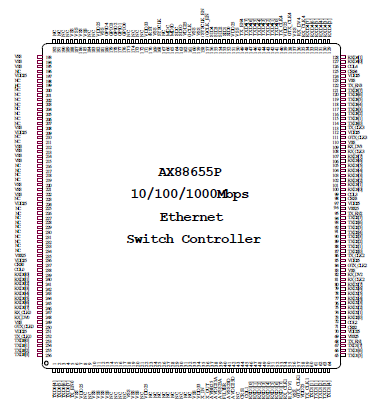

Pinout

Connection Diagram


Specifications

Description SYM Min Max Units
Operating Temperature Ta 0 +70 °C
Storage Temperature Ts -55 +150 °C
Supply Voltage Vcc -0.3 +4.0 V
Input Voltage Vin -0.3 Vdd+0.5 V
Output Voltage Vout -0.3 Vdd+0.5 V
Lead Temperature (soldering 10 seconds maximum) Tl -55 +220 °C



Description

The AX88655 is a 5-Port 10/100/1000 Mbps Ethernet switch with GMII or MII Interface. The switch controller provides network system manufacturers the ideal platform for building smart and cost-effective backbone switches for small to medium sized businesses.

The AX88655 5-Port 10/100/100 BASE-T single chip switch controllers combine the benefits of network simplicity,flexibility and high integration. Its highly integrated feature set enables network system manufacturers to build smart switches for the fast-growing small to medium business market segment.

Benefits of AX88655 Switches are below.
  Simplicity
  Provides a smart, simple and low maintenance plug-and-play network interconnect system for small to medium size businesses
  Flexibility
  Highly scalable configuration allows system manufacturers to enable or disable a range of features to best meet their target price point
  Integration
  Highly integrated design drives down overall switch manufacturing costs.
