General Description
AZ1085 General Description
The AZ1085 is a series of low dropout positive voltage regulators with a maximum dropout of 1.5V at 3A of load current.
The series features on-chip thermal shutdown. It also includes a bandgap reference and a current limiting circuit. The AZ1085 is available in 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, 5.0V and adjustable versions. The fixed versions integrate the adjust resistors. The adjustable version can set the output voltage with two external resistors.
The AZ1085 series is available in standard packages of TO-263-2L, TO-263-3L, TO-220 and TO-252.
AZ1085 Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Operating Junction Temperature | TJ | 150 | ||
| Storage Temperature | TS | -65 | 150 | |
| Lead Temperature (Soldering, 10 sec.) | TLEAD | 300 | ||
| ESD (Human Body Model) | ESD | 2000 | V |
Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under"Recommended Operating Conditions" is not implied. Exposure to "Absolute Maximum Ratings" for extended periods may affect device reliability.
AZ1085 Features
· Low Dropout Voltage: Typical 1.3V at 3A
· Current Limiting and Thermal Protection
· Output Current: 3A
· Current Limit: 4.5A
· Operating Junction Temperature: 0 to 125oC
· Line Regulation: 0.015% (Typical)
· Load Regulation: 0.1% (Typical)
· Current Limiting and Thermal Protection
· Output Current: 3A
· Current Limit: 4.5A
· Operating Junction Temperature: 0 to 125oC
· Line Regulation: 0.015% (Typical)
· Load Regulation: 0.1% (Typical)
AZ1085 Typical Application
· High Efficiency Linear Regulators
· Battery Charger
· Post Regulation for Switching Supplies
· Microprocessor Supply
· Mother Board Power Supplies
· DVD - Video Player
· Telecom Equipment
· Set Top boxes and Web Boxes Modules' Supply
· Battery Charger
· Post Regulation for Switching Supplies
· Microprocessor Supply
· Mother Board Power Supplies
· DVD - Video Player
· Telecom Equipment
· Set Top boxes and Web Boxes Modules' Supply

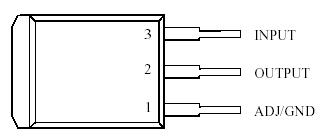

AZ1085 Connection Diagram
AZ1085D-1.5
