AZ10EL07

Features: • 260ps Propagation Delay• High Bandwidth Output Transitions• 75k Internal Input Pulldown Resistors• Direct Replacement for ON Semiconductor MC10EL07 & MC100EL07PinoutSpecifications Symbol Characteristic Rating Unit VCC PECL Power Supply (VEE = 0V)...

product image

AZ10EL07 Picture
See larger image
SeekIC No. : 004293259 Detail

AZ10EL07: Features: • 260ps Propagation Delay• High Bandwidth Output Transitions• 75k Internal Input Pulldown Resistors• Direct Replacement for ON Semiconductor MC10EL07 & MC100EL0...

AZ10EL07 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AZ10EL07
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 260ps Propagation Delay
• High Bandwidth Output Transitions
• 75k Internal Input Pulldown Resistors
• Direct Replacement for ON Semiconductor MC10EL07 & MC100EL07


Pinout

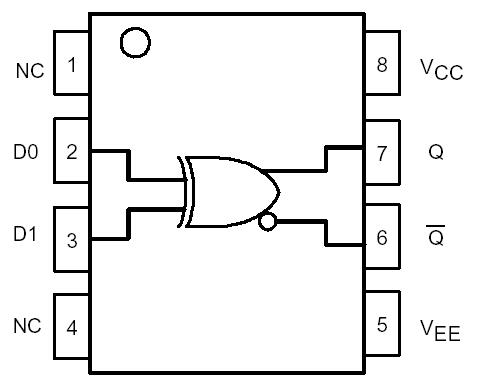

Connection Diagram


Specifications

Symbol Characteristic Rating Unit
VCC PECL Power Supply (VEE = 0V) 0 to +8.0 Vdc
VI PECL Input Voltage (VEE = 0V) 0 to +8.0 Vdc
VEE ECL Power Supply (VCC = 0V) -8.0 to 0 Vdc
VI ECL Input Voltage (VCC = 0V) -6.0 to 0 Vdc
IOUT Output Current - Continuous
- Surge		 50
100		 mA
TA Operating Temperature Range -40 to +85 °C
TSTG Storage Temperature Range -65 to +150 °C



Description

The AZ10/100EL07 is a 2-input XOR/XNOR gate. The device is functionally equivalent to the E107 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E107, the EL07 is ideally suited for those applications that require the ultimate in AC performance. NOTE: Specifications in ECL/PECL tables are valid when thermal equilibrium is established.
