Part Number: AZ34063C
Description: The AZ34063C is a monolithic switching regulator control circuit containing the primary functions required for DC-DC co...
- Table of contents:
AZ34063C
-
Suppliers
DataSheet
General Description
AZ34063C General Description
The AZ34063C is a monolithic switching regulator control circuit containing the primary functions required for DC-DC converters. This device consists of internal temperature compensated reference, voltage comparator, controlled duty cycle oscillator with active current limit circuit, driver and high current output switch. This device is specifically designed to be used in Step-Down, Step-Up and Voltage-Inverting applications with a minimum number of external components.
The AZ34063C is the enhanced version of AZ34063 with the ability to work in higher frequency.
The AZ34063C is available in 2 packages: SOIC-8 and DIP-8.
AZ34063C Maximum Ratings
| Parameter | Symbol | Value | Unit |
| Power Supply Voltage | VCC | 40 | V |
| Comparator Input Voltage Range | VIR | -0.3 to 7 | V |
| Switch Collector Voltage | VC(switch) | 40 | V |
| Switch Emitter Voltage (Vpin1=40V) | VE(switch) | 40 | V |
| Switch Collector to Emitter Voltage | VCE(switch) | 40 | V |
| Driver Collector Voltage | VC(driver) | 40 | V |
| Driver Collector Current (Note 2) | IC(driver) | 100 | mA |
| Switch Current | ISW | 0.8 | A |
| Power Dissipation and ThermalCharacteristics Plastic Package, Power Dissipation (TA = 25 ) Thermal Resistance SOIC Package, Power Dissipation (TA = 25 ) Thermal Resistance |
|||
| PD | 1.25 | W | |
| RJ | 100 | /W | |
| PD | 625 | mW | |
| RJA | 160 | /W | |
| Operating Junction Temperature | TJ | 150 | |
| Storage Temperature Range | TSTG | -65 to 150 | |
| ESD (Human body model) | 2000 | V |
AZ34063C Features
• Operation from 3.0V to 36V Input
• Low Standby Current
• Current Limiting
• Output Switch Current to 0.8A
• Output Voltage Adjustable
• Operation Frequency up to 180KHz (CT=100pF)
• Precision 2% Reference
• Low Standby Current
• Current Limiting
• Output Switch Current to 0.8A
• Output Voltage Adjustable
• Operation Frequency up to 180KHz (CT=100pF)
• Precision 2% Reference
AZ34063C Typical Application
Battery Chargers
NICs/ Switches/ Hubs
ADSL Modems
Negative Voltage Power Supplies
NICs/ Switches/ Hubs
ADSL Modems
Negative Voltage Power Supplies

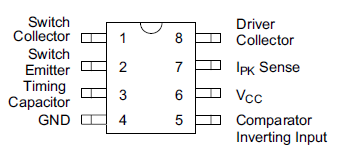

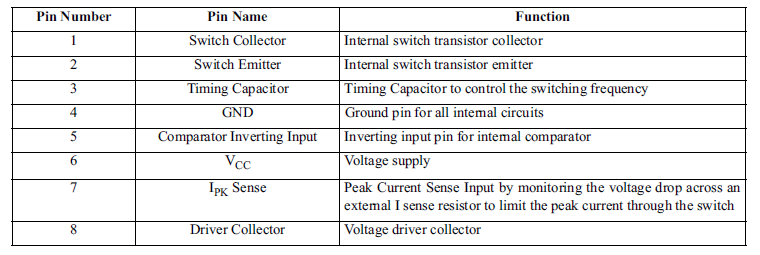

AZ34063C Connection Diagram
AZ34063C
