AZ358C

Features: · Internally Frequency Compensated for Unity Gain· Large Voltage Gain: 100dB (Typical)· Low Input Bias Current: 20nA (Typical)· Low Input Offset Voltage: 2mV (Typical)· Low Supply Current: 0.7mA (Typical)· Wide Power Supply Voltage Range: Single Supply: 3V to 18V Dual Supplies: ±1.5V to ...

product image

AZ358C Picture
See larger image
SeekIC No. : 004293395 Detail

AZ358C: Features: · Internally Frequency Compensated for Unity Gain· Large Voltage Gain: 100dB (Typical)· Low Input Bias Current: 20nA (Typical)· Low Input Offset Voltage: 2mV (Typical)· Low Supply Current:...

AZ358C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AZ358C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Internally Frequency Compensated for Unity Gain
· Large Voltage Gain: 100dB (Typical)
· Low Input Bias Current: 20nA (Typical)
· Low Input Offset Voltage: 2mV (Typical)
· Low Supply Current: 0.7mA (Typical)
· Wide Power Supply Voltage Range: Single Supply: 3V to 18V Dual Supplies: ±1.5V to ±9V
· Input Common Mode Voltage Range Includes Ground
· Large Output Voltage Swing: 0V to VCC-1.5V
· Power Drain Suitable for Battery Operation


Application

· Battery Charger
· Cordless Telephone
· Switching Power Supply


Pinout

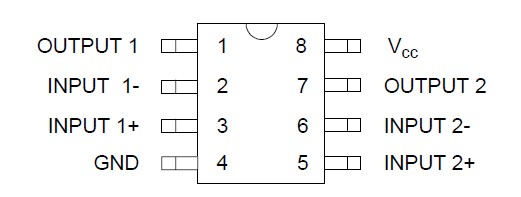

Connection Diagram


Description

The AZ358/358C consists of two independent, high gain and internally frequency compensated operational amplifiers, AZ358/358C is specifically designed to operate from a single power supply. Operation from split power supply is also possible and the low power supply current drain is independent of the magnitude of the power supply voltages.
