Am29DS320G

PinoutSpecificationsStorage TemperaturePlastic Packages . . . . . . . . . . . . . . . 65°C to +150°CAmbient Temperaturewith Power Applied . . . . . . . . ..65°C to +125°CVoltage with Respect to GroundVCC (Note 1) . . . . . . . . . . . . . . . .0.5 V to +4.0 VA9, OE#, and RESET# (Note 2) . . . . . ...

product image

Am29DS320G Picture
See larger image
SeekIC No. : 004282240 Detail

Am29DS320G: PinoutSpecificationsStorage TemperaturePlastic Packages . . . . . . . . . . . . . . . 65°C to +150°CAmbient Temperaturewith Power Applied . . . . . . . . ..65°C to +125°CVoltage with Respect to Grou...

Am29DS320G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Am29DS320G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

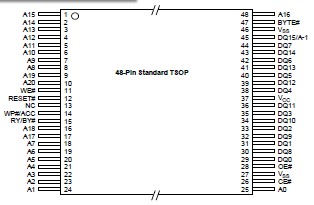

Connection Diagram


Specifications

Storage Temperature
Plastic Packages . . . . . . . . . . . . . . . 65°C to +150°C
Ambient Temperature
with Power Applied  . . . . . . . . ..65°C to +125°C
Voltage with Respect to Ground
VCC (Note 1)  . . . . . . . . . . . . . . . .0.5 V to +4.0 V
A9, OE#, and RESET#
(Note 2) . . . . . . . . . . . . . . . . . . .  0.5 V to +11.0 V
WP#/ACC . . . . . . . . . . . . . . . . . .0.5 V to +10.5 V
All other pins (Note 1) . . . . .  0.5 V to VCC +0.5 V
Output Short Circuit Current (Note 3)  . . .. .  200 mA


Description

The Am29DS320G is a 32 megabit, 1.8 volt-only flashmemory device, organized as 2,097,152 words of 16bits each or 4,194,304 bytes of 8 bits each. Wordmode data appears on DQ15DQ0; byte mode dataappears on DQ7DQ0. The device is designed to beprogrammed in-system with the standard 1.8 volt VCCsupply, and can also be programmed in standardEPROM programmers.

The device is available with an access time of 70, 90,or 120 ns. The devices are offered in 48-pin TSOPand 48-ball FBGA packages. Standard controlpins-chip enable (CE#), write enable (WE#), and out-put enable (OE#)-control normal read and write oper-ations, and avoid bus contention issues.

Am29DS320G requires only a single 1.8 volt power sup-ply for both read and write functions. Internally gener-ated and regulated voltages are provided for theprogram and erase operations.
