Am29F040

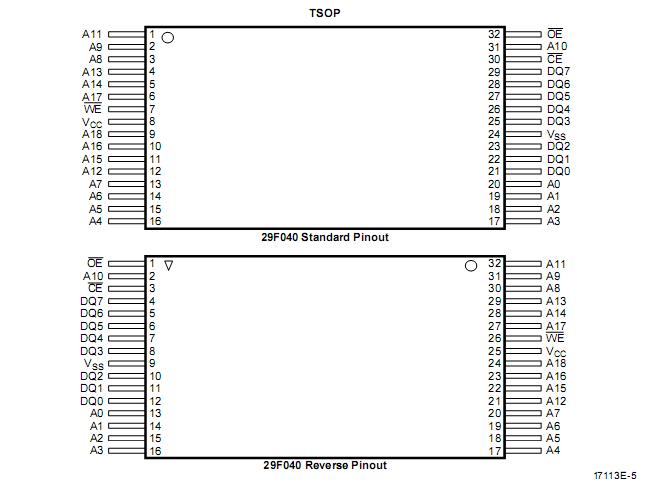

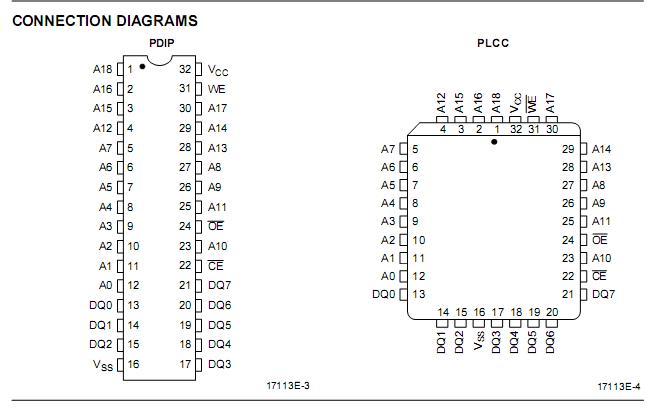

Pinout




Specifications

Storage Temperature
Ceramic Packages. . . . . . . . . . . . . . 65°C to +150°C
Plastic Packages . . . . . . . . . . . . . . . 65°C to +125°C
Ambient Temperature
with Power Applied. . . . . . . . . . . . . . 55°C to +125°C
Voltage with Respect to Ground
All pins except A9 (Note 1). . . . . . . . . .2.0 V to +7.0 V
V_CC(Note 1). . . . . . . . . . . . . . . . . . . . .2.0 V to +7.0 V
A9 (Note 2). . . . . . . . . . . . . . . . . . . . .2.0 V to +13.0 V
Output Short Circuit Current (Note 3) . . . . . . . . 200 mA


Description

The Am29F040 is a 4 Mbit, 5.0 Volt-only Flash memory organized as 512 Kbytes of 8 bits each. The Am29F040 is offered in a 32-pin package. This device is designed to be programmed in-system with the standard system 5.0 V V_CC supply. A 12.0 V V_PP is not required for write or erase operations. The device can also be reprogrammed in standard EPROM programmers.

The standard Am29F040 offers access times between 55 ns and 150 ns, allowing operation of high-speed microprocessors without wait states. The Am29F040 is entirely command set compatible with the JEDEC single-power-supply Flash standard. Commands are written to the command register using
standard microprocessor write timings. Register contents serve as inThe Am29F040 is programmed by executing the program command sequence. This will invoke the Embedded Program Algorithm which is an internal algorithm that automatically times the program pulse widths and verifies proper cell margin. Typically, each sector can be programmed and verified in less than one second.

Erase is accomplished by executing the erase command sequence. This will invoke the Embedded Erase Algorithm which is an internal algorithm that automatically preprograms the array if it is not already programmed before executing the erase operation. During erase, the device automatically times the erase pulse widths and verifies proper cell margin.put to an internal state machine
