Part Number: Am29F800BB-70EC



MFG: AMD

Package Cooled: TSOP

D/C: 00+

Description: The Am29F800B is an 8 Mbit, 5.0 volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The device is off...


Urgent Purchase

Am29F800BB-70EC General Description


The Am29F800B is an 8 Mbit, 5.0 volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The device is offered in 44-pin SO and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15DQ0; the byte-wide(x8) data appears on DQ7DQ0. This device is designed to be programmed insystem with the standard system 5.0 volt VCC supply. A 12.0 V VPP is not required for write or erase operations. The device can also be programmed in standard EPROM programmers.

This device is manufactured using AMD's 0.35 µm process technology, and offers all the features and benefits of the Am29F800, which was manufactured using 0.5 µm process technology.

Am29F800BB-70EC Maximum Ratings

Storage Temperature
Plastic Packages . . . . . . . . . . . . . . . 65°C to +150°C
Ambient Temperature
with Power Applied. . . . . . . . . . . . .  55°C to +125°C
Voltage with Respect to Ground
       VCC (Note 1)  . . . . . . . . . . . . . . . .2.0 V to +7.0 V
       A9, OE#, and RESET# (Note 2). .2.0 V to +12.5 V
       All other pins (Note 1)  . . . . . . . . .0.5 V to +7.0 V
Output Short Circuit Current (Note 3)  . . . . . . .  200 mA

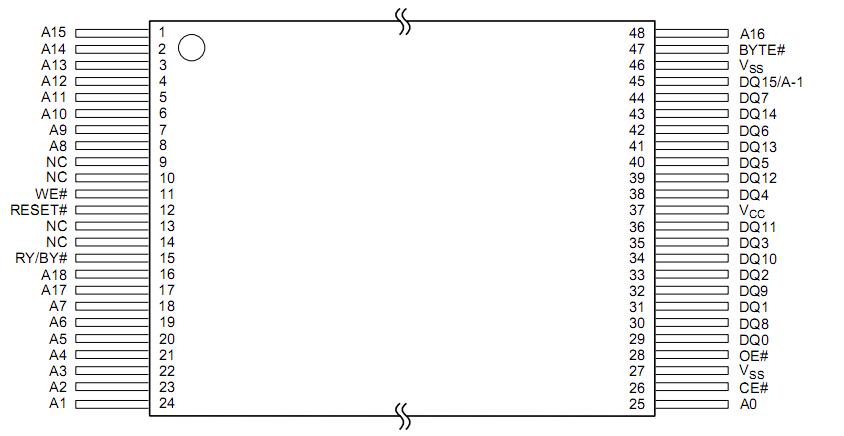

Am29F800BB-70EC Connection Diagram

Am29F800BB-70EC Connection Diagram

Am29F800BB-70EC datasheet

Am29F800BB-70EC
PDF/DataSheet Download

  • Datasheet: Am29F800BB-70EC
  • File Size: 531188 KB
  • Manufacturer: AMD [Advanced Micro Devices]
  • Click here to Download
