Part Number: Am29LV104BB-70EC









Description: The Am29LV104B is a single power supply, 4 Mbit, 3.0 Volt-only Flash memory device organized as 524,288n bytes. The dat...


Urgent Purchase

Am29LV104BB-70EC General Description


The Am29LV104B is a single power supply, 4 Mbit, 3.0 Volt-only Flash memory device organized as 524,288n bytes. The data appears on DQ0-DQ7. The device is available in 32-pin PLCC and 32-pin TSOP packages. All read, erase, and program operations are accomplished using only a single power supply. The device can also be programmed in standard EPROM programmers.

The device offers access times of 55, 70, 90, and 120 ns allowing high speed microprocessors to operate without wait states. To eliminate bus contention, the device has separate control pins-chip enable (CE#), write enable (WE#), and output enable (OE#)-to control normal read and write operations.

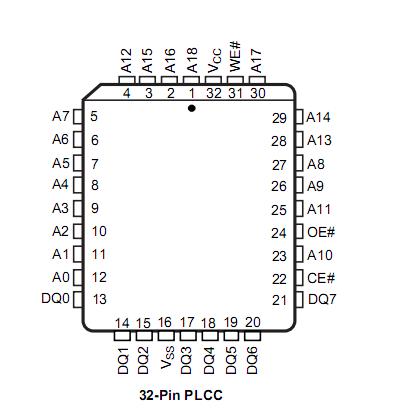

Am29LV104BB-70EC Connection Diagram

Am29LV104BB-70EC Connection Diagram

Am29LV104BB-70EC datasheet

Am29LV104BB-70EC
PDF/DataSheet Download

  • Datasheet: Am29LV104BB-70EC
  • File Size: 39960 KB
  • Manufacturer: AMD [Advanced Micro Devices]
  • Click here to Download
