Part Number: Am486DE2









Description: The Am486DE2 microprocessor is an addition to the AMD Am486 microprocessor family. The Am486DE2 enhanc...


Urgent Purchase

Am486DE2 General Description


The Am486DE2 microprocessor is an addition to the AMD Am486 microprocessor family. The Am486DE2 enhances system performance by incorporating flexible clock control and enhanced SMM.

The Am486DE2 CPU clock control feature permits the CPU to be stopped under controlled conditions, allowing reduced power consumption during system inactivity. The SMM function is implemented with an industry-standard, two-pin interface.

Am486DE2 Maximum Ratings

Case Temperature under Bias. . 65°C to +110°C
Storage Temperature . . . . . . . . 65°C to +150°C
Voltage on any pin
with respect to ground . . . . . . 0.5 V to Vcc +2.6 V
Supply voltage with
respect to VSS . . . . . . . . . . . . . . .. 0.5 V to +4.6 V
Stresses above those listed under Absolute Maximum Ratings may cause permanent device failure. Functionality at or above these limits is not implied. Exposure to Absolute Maximum Ratings for extended periods may affect device reliability.

Am486DE2 Features

- 3-V core with 5-V-tolerant I/O
- Binary compatible with all Am486® DX and Am486DX2 microprocessors
- Wide range of support available through the AMD®FusionE86SM Program

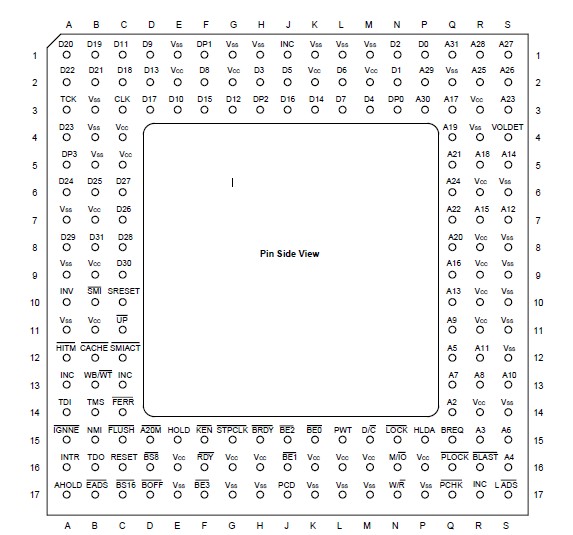

Am486DE2 Connection Diagram

Am486DE2 Connection Diagram

Am486DE2 datasheet

AM486DE2-66V8THC
PDF/DataSheet Download
