B10DCT
-
Suppliers
DataSheet
General Description
B10DCT Maximum Ratings
|
PARAMETER |
SYMBOL |
U(F,B)10BCT |
U(F,B)10CCT |
U(F,B)10DCT |
UNIT |
| Maximum repetitive peak reverse voltage |
VRRM |
100 |
150 |
200 |
V |
| Maximum average forward current |
IF(AV) |
10 5 |
A | ||
| Maximum peak one cycle non-repetitive surge current |
IFSM |
55 | |||
| Electrostatic discharge capacitor voltage, human body model: C = 150 pF, R = 1.5 k (contact mode) |
VC |
8 |
kV | ||
| Isolation voltage (ITO-220AB only) from terminal to heatsink t = 1 min per diode |
VAC |
1500 |
V | ||
| Operating junction and storage temperature range |
TJ,TSTG |
- 55 to + 150 |
|||
B10DCT Features
• Oxide planar chip junction
• Ultrafast recovery time
• Soft recovery characteristics
• Low switching losses, high efficiency
• High forward surge capability
• High frequency operation
• Meets MSL level 1, per J-STD-020, LF maximum peak of 245 (for TO-263AB package)
• Solder dip 260 °C, 40 s (for TO-220AB, IT-220AB)
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
• Ultrafast recovery time
• Soft recovery characteristics
• Low switching losses, high efficiency
• High forward surge capability
• High frequency operation
• Meets MSL level 1, per J-STD-020, LF maximum peak of 245 (for TO-263AB package)
• Solder dip 260 °C, 40 s (for TO-220AB, IT-220AB)
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
B10DCT Typical Application
For use in low voltage, high frequency rectifier of switching power supplies, freewheeling diodes,dc-to-dc converters or polarity protection application.
B10011
PDF/DataSheet Download
- Datasheet: B10011
- File Size: 130439 KB
- Manufacturer: ATMEL [ATMEL Corporation]
- Click here to Download
- ·B10011-MFP
- ATMEL [ATMEL Corporation]
- CAN TRANSCEIVER IC
- 130439 KB
- ·B10011-MFPG1
- ATMEL [ATMEL Corporation]
- CAN TRANSCEIVER IC
- 130439 KB
- ·B10011S
- ATMEL [ATMEL Corporation]
- CAN TRANSCEIVER IC
- 130439 KB
- ·B10011S
- Low-speed CAN transceiver for high transmision levels, two-wire bus interface
- 71064 KB
- ·B10011S-MFP
- ATMEL [ATMEL Corporation]
- CAN TRANSCEIVER IC
- 130439 KB
- ·B10011S-MFPG1
- ATMEL [ATMEL Corporation]
- CAN TRANSCEIVER IC
- 130439 KB
- ·B1001EWA
- ETC [ETC]
- EVERLIGHT ELECTRONICE CO., LTD.
- 161911 KB
- ·B100NH02L
- STMICROELECTRONICS
- N-channel 24V - 0.0052ohm - 60A - DPAK/IPAK STripFET TM Power MOSFET
- 419817 KB
B10DCT Relative Products

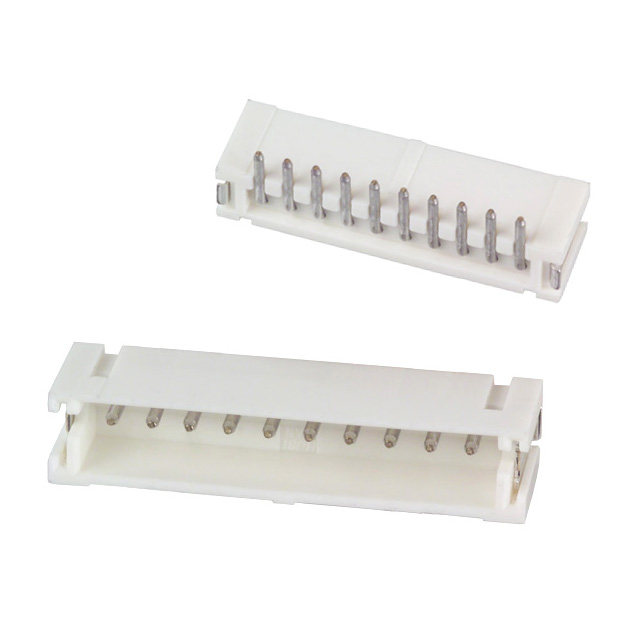

B10B-ZR-SM4-TF(LF)(SN)(P)
