B40 - B380
-
Suppliers
DataSheet
General Description
B40 - B380 Maximum Ratings
| RATING | SYMBOL | B40- C1500R |
B80- C1500R |
B125- C1500R |
B250- C1500R |
B380- C1500R |
UNIT |
| Maximum Recurrent Peak Reverse Voltage | VRRM | 100 | 200 | 300 | 600 | 900 | Volts |
| Maximum RMS Input Voltage R+C -Load | VRMS | 40 | 80 | 125 | 250 | 380 | Volts |
| Maximum DC Blocking Voltage | VDC | 100 | 200 | 300 | 600 | 900 | Volts |
| Maximum Average Forward Current For Free Air Operation at Tc = 45°C R+L -Load C -Load |
IF(AV) | 1.6 1.5 |
Amps. | ||||
| Peak Forward Surge Current Single half sine wave on rated load (JEDEC Method) at TJ = 125 °C |
IFSM | 50 | Amps. | ||||
| Rating for fusing at TJ = 125°C ( t < 100 ms.) | I2t | 10 | A2S | ||||
| Maximum Series Resistor C-Load VRMS = ± 10% | Rt | 1.0 | 2.0 | 4.0 | 8.0 | 12.0 | |
| Maximum load Capacitance + 50% -10% |
CL | 5000 | 2500 | 1000 | 500 | 200 | F |
| Maximum Forward Voltage per Diode at IF = 1.5 Amp. | VF | 1.0 | Volt | ||||
| Maximum Reverse Current at Rated Repetitive Peak Voltage per Diode Ta = 25 °C |
IR | 10 | A | ||||
| Typical Thermal Resistance (Note 1) | RJA | 36 | °C/W | ||||
| Operating Junction Temperature Range | TJ | - 50 to + 125 | °C | ||||
| Storage Temperature Range | TSTG | - 50 to + 125 | °C | ||||
B40 - B380 Features
* High case dielectric strength
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Ideal for printed circuit board
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Ideal for printed circuit board
B40-1500R
PDF/DataSheet Download
- Datasheet: B40-1500R
- File Size: 24362 KB
- Manufacturer: EIC [EIC discrete Semiconductors]
- Click here to Download
- ·B4018
- EPCOS
- SAW Components Low-Loss Duplexer for Mobile Communication
- 139264 KB
- ·B40-28
- ASI [Advanced Semiconductor]
- NPN SILICON RF POWER TRANSISTOR
- 24166 KB
- ·B4040
- EPCOS
- SAW Components Low-Loss Duplexer for Mobile Communication
- 139264 KB
- ·B4044
- ETC [ETC]
- Low Loss Filter for Mobile Communication
- 44659 KB
- ·B4049
- EPCOS
- SAW Components Low-Loss Filter for Mobile Communication
- 139264 KB
- ·B4050
- ETC [ETC]
- Low Loss Filter
- 83716 KB
- ·B4057
- EPCOS
- SAW Components Low Loss Filter
- 139264 KB
- ·B4058
- EPCOS
- SAW Components Low Loss Filter
- 139264 KB
B40 - B380 Relative Products
B-4-0
CORD PATCH BANANA PLUG 4" BLACK
B3WN-6002
SWITCH TACT WATERTIGHT 200GF

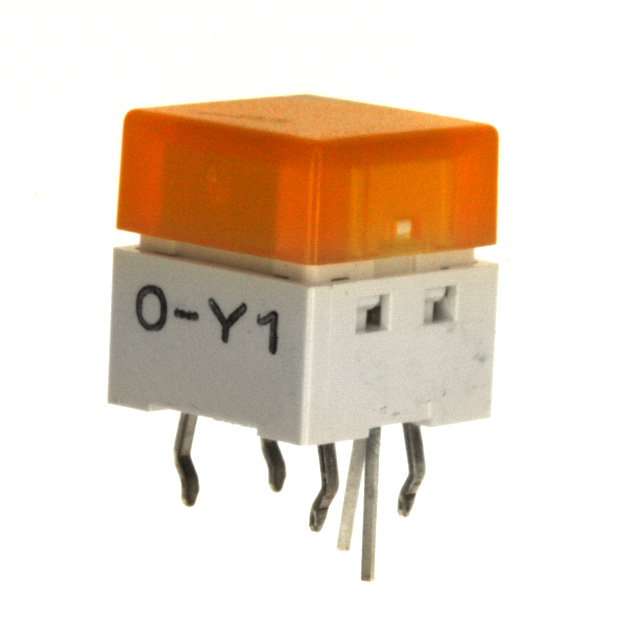

B3W-9000-Y1Y
SWITCH TACT ILLUM SPST-NO YELLOW
B3W-9000-Y1N
SWITCH TACT ILLUM SPST-NO YELLOW

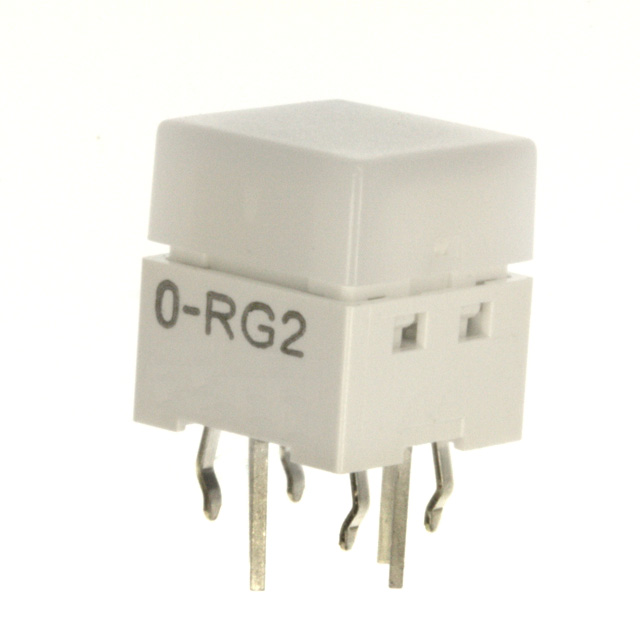

B3W-9000-RG2N
SWITCH TACT ILLM SPST-NO RED/GRN

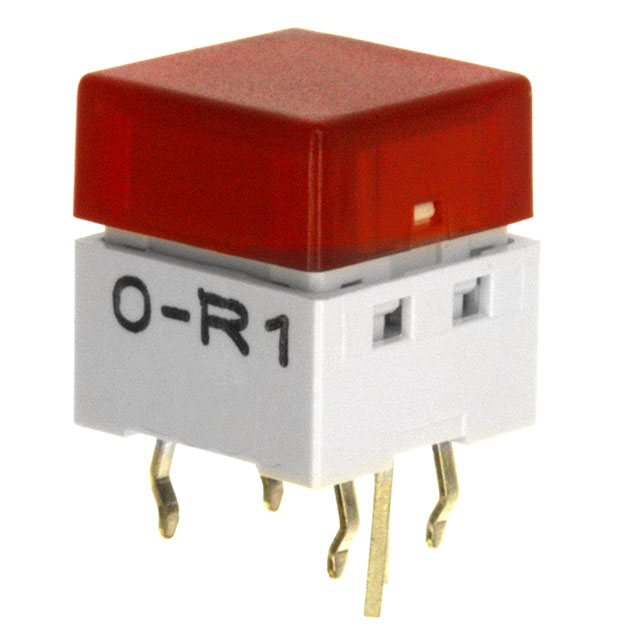

B3W-9000-R1R
