BA3822LS

Features: 1) Allows construction of a five-point stereo graphic equalizer with a single IC.2) Wide operating power supply voltage range (VCC = 3.5V to 14V).3) Low current dissipation (IQ = 7mA).4) Available in compact SZIP /SSOP-A24 packages.ApplicationFive-point stereo graphic equalizer for home ...

product image

BA3822LS Picture
See larger image
SeekIC No. : 004295505 Detail

BA3822LS: Features: 1) Allows construction of a five-point stereo graphic equalizer with a single IC.2) Wide operating power supply voltage range (VCC = 3.5V to 14V).3) Low current dissipation (IQ = 7mA).4) A...

BA3822LS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BA3822LS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) Allows construction of a five-point stereo graphic
   equalizer with a single IC.
2) Wide operating power supply voltage range (VCC = 3.5V to 14V).
3) Low current dissipation (IQ = 7mA).
4) Available in compact SZIP /SSOP-A24 packages.


Application

Five-point stereo graphic equalizer for home and car stereo systems.

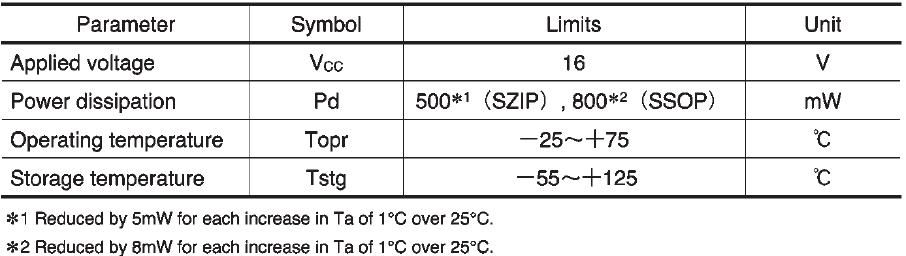

Specifications

Connection Diagram


Description

The BA3822LS, BA3822FS, BA3823LS, and BA3824LS are monolithic, five-point stereo graphic equalizer ICs. Each IC has two channels, and the five center frequencies for each channel are independently set using external capacitors. These ICs feature a wide operating power supply voltage range (VCC = 3.5V to 14V), and are available in compact 24-pin SZIP and SSOP packages, depending on the type. This makes them an ideal choice for home stereo systems, radio cassette players, and car stereos.

The difference between the ICs is the amount of boost and cut control. Choose according to the requirements of your application.
