Part Number: BA4510F



MFG: ROHM



D/C: 04+

Description: The BA4510F and BA4510FV are monolithic ICs that contain two operational amplifiers with high slew rat...


Urgent Purchase

BA4510F General Description


The BA4510F and BA4510FV are monolithic ICs that contain two operational amplifiers with high slew rate, featuring phase compensation. These ICs can be driven with a low-voltage power supply, requiring a power supply range of ± 1 to ± 3.5V for a dual power supply and 2 to 7V for a single power supply. In addition, an unbuffered type is used which enables ample output even in low voltage ranges, enabling swing at up to nearly the power supply voltage.

BA4510F Maximum Ratings

Parameter Symbol Limits Unit
Power supply voltage VCC ± 5 V
Power dissipation BA4510F Pd 550*1 (SOP) mW
BA4510FV 350*2 (SSOP)
Differential input voltage Vid ± VCC V
Common-mode input voltage Vi 0 ~ VCC V
Operating temperature Topr 20 ~ + 75 °C
Storage temperature Tstg 40 ~ + 125 °C
*1 If used at temperatures higher than 25°C, reduce power by 5.5mW for each 1°C above Ta = 25°C.
     This value is the value measured when mounted on a glass epoxy board (50mm ´ 50mm ´ 1.6mm).
*2 If used at temperatures higher than 25°C, reduce power by 3.5mW for each 1°C above Ta = 25°C.
     This value is the value measured when mounted on a glass epoxy board (70mm ´ 70mm ´ 1.6mm).
     The value is 300mW when the IC is used alone.

BA4510F Features

1) Low-voltage operation.
2) High slew rate.
3) Wide dynamic output range.
4) Compact 8-pin SSOP-B package. (BA4510FV)

BA4510F Connection Diagram

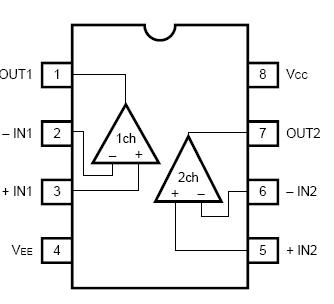

BA4510F Connection Diagram
