Product Details

Description

Features:

1) Wide dynamic range (VOUT = 4V [Typ.] when PreVCC
= 8V, PowVCC = 5V, and RL = 8W).
2) Internal thermal shutdown circuit.
3) Internal mute functions.
4) Internal standby functions.

Application

CD-ROM, DVD-ROM, MD, and optical discs

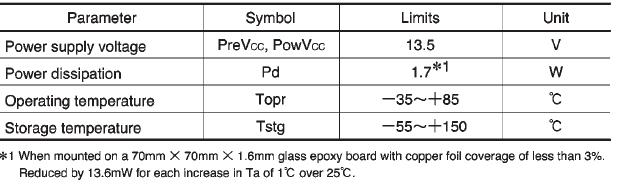

Specifications

Connection Diagram

Description

The BA5972FP is a 4-channel BTL driver developed for use with CD-ROMs. A multi-purpose operational amplifier is equipped in each channel to allow use in a variety of applications. Also, by applying independent power supplies for both the pre-stage and power-stage, with the power-stage power supply further split into two so one power supply handles two channels each, a highly efficient driver has been realized.
