BA6286N: Motor / Motion / Ignition Controllers & Drivers REVERS MOTOR DRIVER 10PIN SIP

BA6286N Data Sheet

US $ .89~.89 / Piece | Get Latest Price

Part Number:: BA6286N
Mfg:: ROHM Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~600

Unit Price
$.89

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BA6208 evaluate
US $.34 - .34 / Piece

IC DRIVER REVERSE MOTOR SIP9
BA6208F evaluate
Features: Motor driving power transistors are built in (100mA typically). Brake is applied when s...
BA6208F-E2 evaluate
US $.29 - .29 / Piece

IC DRIVER REVERSE MOTOR SOP8 TR

Product Details

Quick Details

Mounting Style :	Through Hole	Package / Case :	SIP-10
Packaging :	Bulk

Description

Product :
Type :
Operating Supply Voltage :
Supply Current :
Packaging : Bulk
Mounting Style : Through Hole
Package / Case : SIP-10

Features:

Logic and power sections have separate ground pins; this allows the IC to drive speed-variable, reversible motors by connecting an electronic governor circuit.
Built-in power saving circuit suppresses the stop mode current dissipation.
Output voltage can be set arbitrarily with the V_REFpin.
Interfaces with TTL devices.
Built-in thermal shutdown circuit.

Application

VCRs and audio equipment in general

Pinout

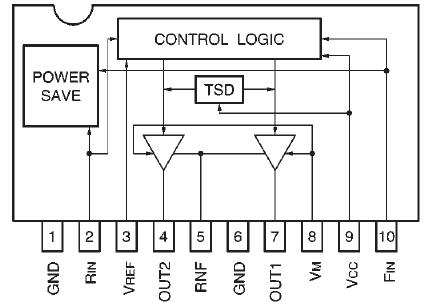

Connection Diagram

Specifications

Parameter		Symbol	Limits	Unit
Power supply Voltage		V_CC	18	V
Power dissipation	BA6286	P_d	2000^*1	mW
Power dissipation	BA6286N	P_d	1050^*2	mW
Operating temperature		T_opr	-20~+75
Storage temperature		T_stg	-55~+150
Output current		I_OUT	1000^*3	mA

Description

The BA6286 and BA6286N are reversible-motor drivers with a maximum output current of 1.0A. Two logic inputs allow four output modes: forward, reverse, stop (idling), and brake. A built-in power saving circuit suppresses current consumption when the motor is in stop mode.

Parameters:

Technical/Catalog Information	BA6286N
Vendor	Rohm Semiconductor
Category	Integrated Circuits (ICs)
Applications	DC Motor Driver
Number of Outputs	1
Voltage - Supply	4.5 V ~ 15 V
Voltage - Load	4.5 V ~ 15 V
Current - Output	1A
Operating Temperature	-20°C ~ 75°C
Package / Case	10-SIP
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BA6286N BA6286N
