Part Number: BA6392FP
MFG: ROHM
Description: The BA6392FP is a 4-channel BTL driver for CD player motors and actuators. It has an internal primary ...
- Table of contents:
BA6392FP
-
Suppliers
DataSheet
General Description
BA6392FP General Description
The BA6392FP is a 4-channel BTL driver for CD player motors and actuators. It has an internal primary filter, and can be directly connected (without attached components) to the servo PWM output of all drivers other than the spindle driver.
The BA6392FP is pin compatible with the BA6297AFP.
BA6392FP Maximum Ratings
| Parameter | Symbol | Limits | Unit |
| Power supply voltage | Vcc |
18 | V |
| Power dissipation | Pd |
1.7*1 |
W |
| Operating temperature | Topr | -30~+85 | |
| Storage temperature | Tstg | -55~+150 |
BA6392FP Features
HSOP 28-pin package allows for miniaturization of applications.
PWM input is filtered by the internal primary filter, eliminating the need for attached resistors and capacitors, thereby helping reduce the number of components. Resistor and capacitor time constants can also be changed with attached components.
Internal thermal shutdown circuit.
Internal mute circuit.
BA6392FP Typical Application
CD players, CD-ROM drives

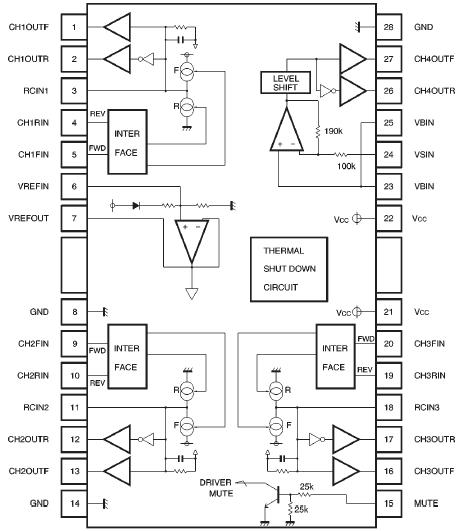

BA6392FP Connection Diagram
BA6392FP
