BA6780FP-Y

Features: 1) Output voltage can be freely set using the output voltage setting pin.2) Internal mute function if the power supply voltage drops.3) Thermal shutdown function. (Contains hysteresis)4) PWM input.5) Settable reference voltage output pin.6) Wide operating supply voltage.ApplicationChange...

product image

BA6780FP-Y Picture
See larger image
SeekIC No. : 004295731 Detail

BA6780FP-Y: Features: 1) Output voltage can be freely set using the output voltage setting pin.2) Internal mute function if the power supply voltage drops.3) Thermal shutdown function. (Contains hysteresis)4) P...

BA6780FP-Y Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BA6780FP-Y
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) Output voltage can be freely set using the output voltage setting pin.
2) Internal mute function if the power supply voltage drops.
3) Thermal shutdown function. (Contains hysteresis)
4) PWM input.
5) Settable reference voltage output pin.
6) Wide operating supply voltage.




Application

Changers for CD players and MD players.


Pinout

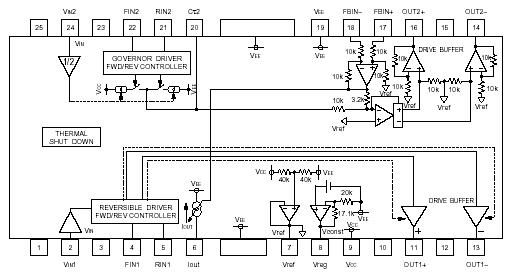

Connection Diagram




Specifications

Parameter
Symbol
Limits
Unit
Power supply voltage
VCC
18
V
Logic input voltage
VFIN, VRIN
22
V
Power dissipation BA6780
Pd
1.31 ∗1
W
BA6780FP-Y
1.45 ∗2
Maximum current consumption
Imax
1.4*2
A
Operating temperature
Topr
−25~+75
°C
Storage temperature
Tstg
−55~+150
°C
