Purchase BA6800AS, In-stock BA6800AS From SeekIC.
MFG:ROHM Package Cooled:DIP
- Table of contents:
BA6800AS
-
Suppliers
DataSheet
General Description
BA6800AS Features
1) Uses dynamic-drive system to display two 16-point channels. 30-pin SDIP package.
2) AC and DC inputs provided. Switching function allows two-mode display.
3) Upper 12 points have peak hold function in AC mode (two seconds).
4) Power-on mute function.
5) Dynamic-drive system reduces the power dissipation of the fluorescent display tube power supply.
6) Square root compression amplifier built in.
BA6800AS Typical Application
Level meters for all types of AV equipment

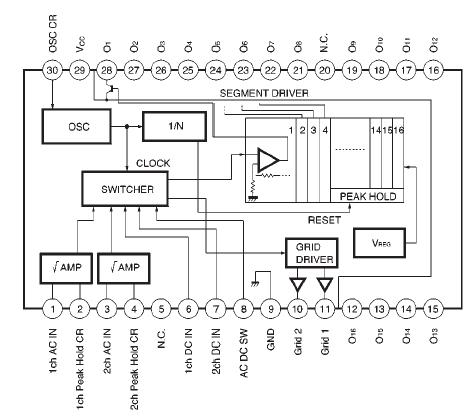

BA6800AS Connection Diagram
BA6800AS
PDF/DataSheet Download
- Datasheet: BA6800AS
- File Size: 134509 KB
- Manufacturer: ROHM [Rohm]
- Click here to Download
