Product Details

Description

Features:

1) Uses dynamic-drive system to display two 16-point channels. 30-pin SDIP package.
2) AC and DC inputs provided. Switching function allows two-mode display.
3) Upper 12 points have peak hold function in AC mode (two seconds typ.).
4) Power-on mute function.
5) Dynamic-drive system reduces the power dissipation of the fluorescent display tube power supply.
6) Square root compression amplifier built in.

Application

Level meters for all types of AV equipment

Pinout

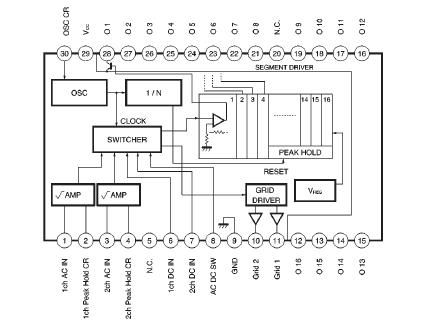

Connection Diagram

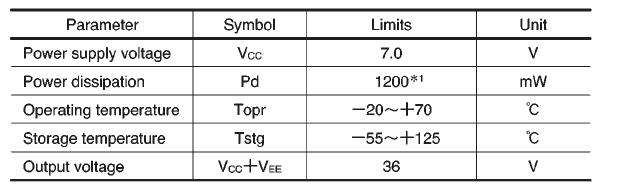

Specifications

Connection Diagram
