General Description
BA6955N General Description
The BA6283N, BA6284N, and BA6955N are reversible-motor drivers with a maximum output current of 1.0 A. Two logic inputs allow four output modes: forward, reverse, stop (standby), and brake.
The built-in power save circuit suppresses current consumption in the motor stop mode.
BA6955N Maximum Ratings
| Parameter | Symbol | Limits | Unit | |
| Applied Voltage | VCC | 18 | V | |
| Power dissipation | BA6283N | Pd | 1150*1 | mW |
| BA6284N | 1150*1 | |||
| BA6599N | 1080*2 | |||
| Operating temperature | Topr | -25~+75 | ||
| Storage temperature | Tstg | -55~+150 | ||
| Output current | IOUT | 1000*3 | mA | |
BA6955N Features
Logic and driver sections have separate ground pins; this allows the IC to drive speed-variable, reversible motors by connecting an electronic governor circuit.
Built-in power saving circuit suppresses current consumption in stop (standby) mode.
Interfaces with TTL devices.
Built-in thermal shutdown circuit.
BA6955N Typical Application
VCRs, audio devices

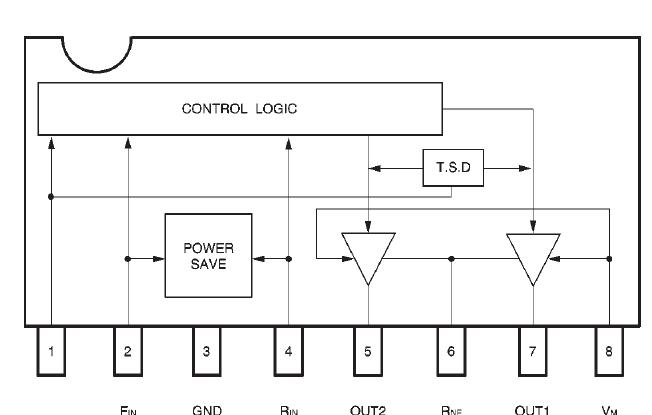

BA6955N Connection Diagram
BA6955N
PDF/DataSheet Download
- Datasheet: BA6955N
- File Size: 107320 KB
- Manufacturer: ROHM [Rohm]
- Click here to Download
