Part Number: BA7071F
MFG: ROHM
D/C: 04+
Description: The BA7071F contains a video synchronization separation circuit, a vertical video synchronization sepa...
- Table of contents:
BA7071F
-
Suppliers
DataSheet
General Description
BA7071F General Description
The BA7071F contains a video synchronization separation circuit, a vertical video synchronization separation circuit, a horizontal oscillation circuit, and a phase comparator. It separates and outputs the horizontal and vertical synchronization signals (HD and VD), and the composite synchronization signal (Sync-out) from input video or composite synchronization signals. The phase difference between HD and VD is guaranteed for both the rising and fallingedges of VD.
BA7071F Maximum Ratings
| Parameter | Symbol | Limits | Unit |
| Power supply voltage | VCC |
8.0 | V |
| Power dissipation | Pd | 350* | mW |
| Operating temperature | Topr | 20 ~ + 75 | |
| Storage temperature | Tstg | 55 ~ + 125 |
BA7071F Features
Built in AFC circuit.
HD and VD phase difference guaranteed.
Wide supply voltage range (3V to 7V).
Horizontal free-run frequency does not require adjustment.
Low external parts count.
SOP 8-pin package.
BA7071F Typical Application
TVs, VCRs and camcorders

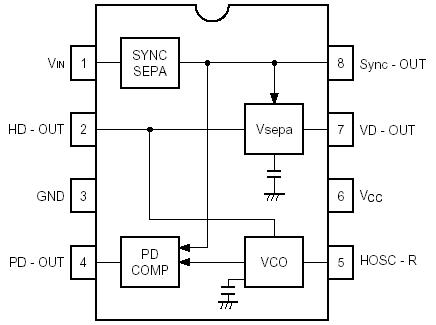

BA7071F Connection Diagram
BA7071F
