BA7604N

Voltage Supply Source: Single Supply
Operating Temperature: -40°C ~ 85°C
Series: -
Function: Video Switch
Voltage - Supply, Single/Dual (±): 4.5 V ~ 5.5 V
Mounting Type: Through Hole
Packaging: Tube
Circuit: 2 x 2:1
On-State Resistance: -
Manufacturer: Rohm Semiconductor
Current - Supply: 8.4mA
Package / Case: 10-SIP
Supplier Device Package: 10-SIP


Features:

 Two 2-input / 1-output switches.
5V power supply.
Low power consumption (42mW Typ.).
Excellent frequency characteristics (10MHz, 0dB, Typ.).
Wide dynamic range (3.0V_P-P Typ.).
High input impedance (20k Typ.).
Fast switching speed (50ns Typ.).

Application

VCRs and TVs

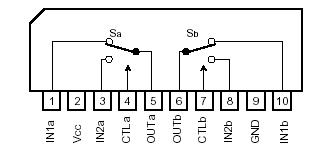

Pinout




Specifications

Parameter	Symbol	Limits		Unit
Power supply voltage	Vcc	9		V
Power dissipation	Pd	500*		mW
Operating temperature	Topr	40~+ 85
Storage temperature	Tstg	−55 ~+125

Description

The BA7604N is a switching IC developed for use in VCRs. It has two-channel analog multiplexers, and features wide dynamic range, and wide operating frequency range, and is suitable for switching audio and video signals.

Parameters:

Technical/Catalog Information	BA7604N
Vendor	Rohm
Category	Integrated Circuits (ICs)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BA7604N BA7604N
