MFG:ROHM Package Cooled:DIP
Part Number: BA7631
MFG: ROHM
Package Cooled: DIP
Description: The BA7631 and BA7631F are audio-switching ICs for decoders for scrambled pay channels used in France ...
- Table of contents:
BA7631
-
Suppliers
DataSheet
General Description
BA7631 General Description
The BA7631 and BA7631F are audio-switching ICs for decoders for scrambled pay channels used in France and other countries. The ICs include a five-input multiplexer, a four-input multiplexer and a two-input multiplexer, and allow decoder audio switching to be done with a single IC. When used in combination with the BA7630S common logic control can be used for audio and video switching.
BA7631 Maximum Ratings
| Parameter | Symbol | Limits | Unit | |
| Applied voltage | Vcc |
13.5 | V | |
| Power dissipation | Pd | 1100* (DIP) 500* (SOP) |
mV | |
| Operating temperature | Topr | −25~ +70 | ||
| Storage temperature | Tstg | −55 ~+125 | ||
BA7631 Features
All the audio-switching functions required for SECAM CANAL -plus decoder integrated onto one chip.
Inputs terminated with 65k resistors.
Built-in output buffer.
Wide supply voltage range (4.5V to 13.0V).
Low total harmonic distortion (0.005% Typ.).
Wide dynamic range (3.6Vrms, VCC = 12V).
Same control logic as for the BA7630S can be used.
BA7631 Typical Application
Video cassette recorders

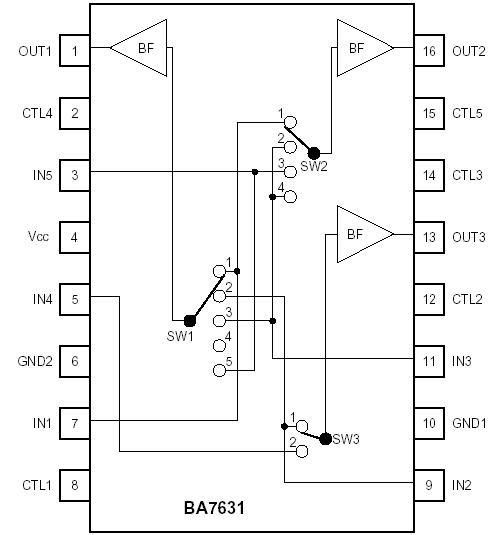

BA7631 Connection Diagram
BA7631
PDF/DataSheet Download
- Datasheet: BA7631
- File Size: 77532 KB
- Manufacturer: ROHM [Rohm]
- Click here to Download
