Description: The BA7644AN is a four-channel analog multiplexer with mute, designed for use in video cassette record...
- Table of contents:
BA7644AN
-
Suppliers
DataSheet
General Description
BA7644AN General Description
The BA7644AN is a four-channel analog multiplexer with mute, designed for use in video cassette recorders. It features a wide dynamic range, and wide operating frequency range, and is suitable for switching audio and video signals.
BA7644AN Maximum Ratings
| Parameter | Symbol | Limits | Unit |
| Power supply voltage | Vcc |
13.5 | V |
| Power dissipation | Pd | 850* | mW |
| Operating temperature | Topr | -25~+75 | |
| Storage temperature | Tstg | -55~+125 |
BA7644AN Features
4-input / 1-output switches.
Built-in mute.
Wide operating supply voltage range (4.5V to 13.0V).
Low power consumption (48mW Typ.).
Excellent frequency characteristics (10MHz, 0dB Typ.).
Wide dynamic range (3.5VP-P Typ.).
High input impedance (20k Typ.).
Low interchannel crosstalk ( 65dB Typ., f = 4.43MHz).
BA7644AN Typical Application
VCR, TV and audio signal switching

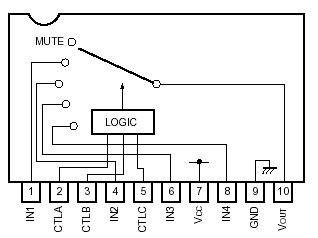

BA7644AN Connection Diagram
BA7644AN
