MFG:ROHM Package Cooled:SOP7.2 D/C:98
MFG: ROHM
Package Cooled: SOP7.2
D/C: 98
Description: The BA7652AF is a video-signal switching IC that contains a three-channel clamped-input multiplexer an...
The BA7652AF is a video-signal switching IC that contains a three-channel clamped-input multiplexer and a built-in mute circuit. The inputs are sync-tip clamped (synchronous edge of the video input signals are aligned to the same voltage), and as the input impedance is extremely large, it is possible to use a small value for the clamp capacitor. [The recommended capacitor is 0.01F (FZ) ceramic].

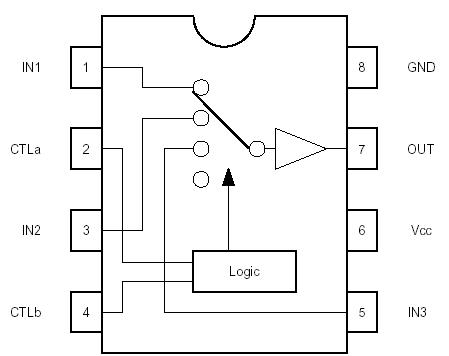

| Parameter | Symbol | Limits | Unit |
| Applied voltage | Vcc |
9 | V |
| Power dissipation | Pd | 500* | mW |
| Operating temperature | Topr | −25 ~+75 | |
| Storage temperature | Tstg | −55 ~+125 |
Small clamp capacitors can be used (ceramic, 3000pF (Min.), 0.01F (FZ) (recommended)).
Low supply voltage operation possible. Supply voltage range is 3.7V to 7.7V.
Superimposition used for fast switching speed with low switching noise (70ns. Typ.).
Low power consumption (when VCC = 5V, 25mW Typ.).
Wide dynamic range (3.1VP-P Typ. for VCC = 5V).
Mute function.
Excellent frequency characteristics (10MHz, 0dB Typ.).
Low interchannel crosstalk ( 70dB Typ.).
Voltage can be applied to the control pins even when VCC is not applied.
BA7652AF
